Hybrid Power Control Unit (HPCU) Tray

  1. Remove the hybrid power control unit.

    (Refer to Hybrid Control System - "HYBRID POWER CONTROL UNIT (HPCU) ")

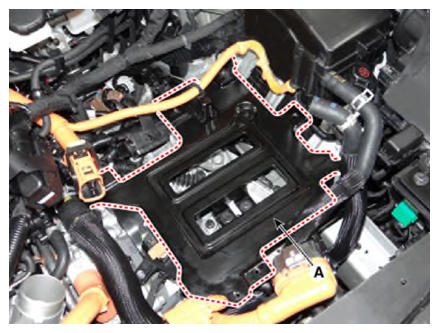

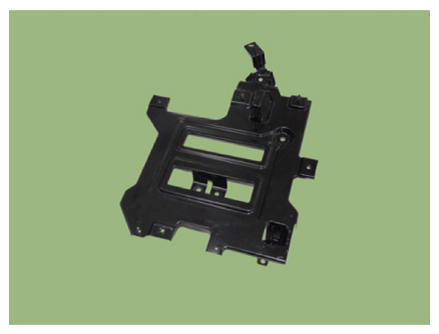

  2. Remove the hybrid power control unit tray (A) after loosening the mounting bolts.

    Hybrid Power Control Unit (HPCU) tray mounting bolt:

    21.6 - 23.5 N.m (2.2 - 2.4 kgf.m, 15.9 - 17.4 lb.ft)

    G13352023Courtesy of KIA MOTORS AMERICA, INC.
    G13352024Courtesy of KIA MOTORS AMERICA, INC.
