Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the rear seat cushion.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

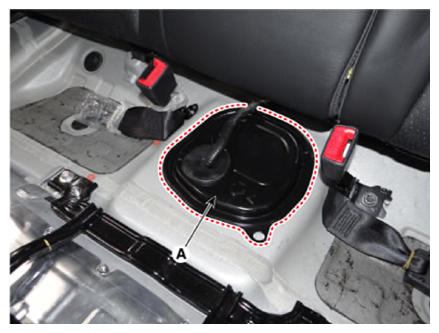

  3. Fuel pump service cover (A).
    G13436672Courtesy of KIA MOTORS AMERICA, INC.

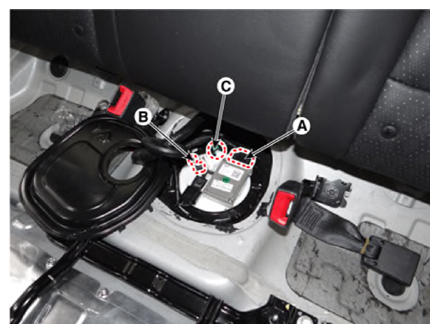

  4. Remove the fuel pump control module connector (A).
  5. Disconnect the fuel pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick-connector (C).
    G13436673Courtesy of KIA MOTORS AMERICA, INC.
  7. Lift the vehicle.
  8. Remove the center muffler.

    (Refer to Engine Mechanical System - "MUFFLER ")

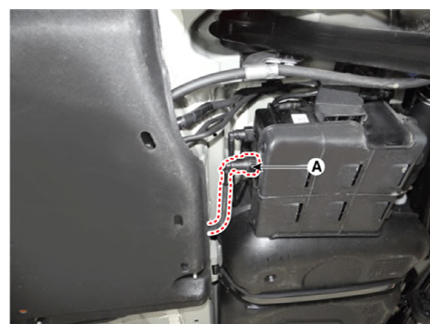

  9. Disconnect the vapor tube quick-connector (A).
    G13436674Courtesy of KIA MOTORS AMERICA, INC.

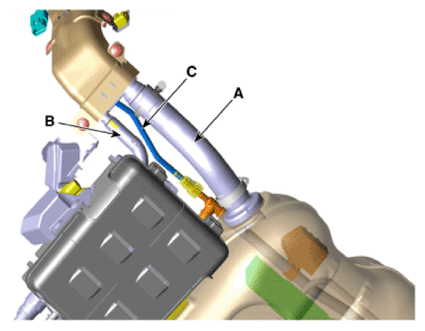

  10. Disconnect the fuel filler hose (A), ventilation hose (B) and leveling tube quick-connector (C).
    G13436675Courtesy of KIA MOTORS AMERICA, INC.

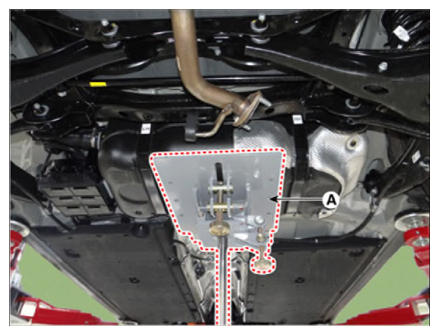

  11. Support the tank on a jack (A).
    G13436676Courtesy of KIA MOTORS AMERICA, INC.

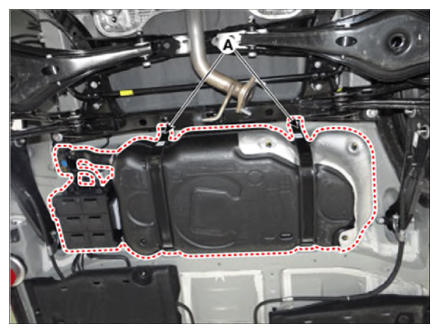

  12. Remove the fuel tank band mounting nuts (A).

    Fuel tank band mounting nut:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb.ft)

    G13436677Courtesy of KIA MOTORS AMERICA, INC.

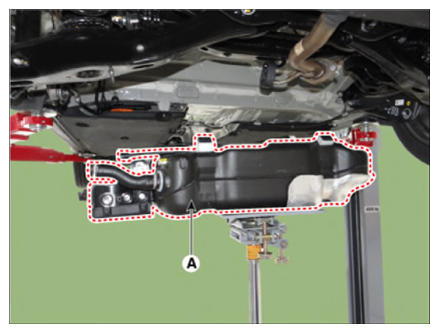

  13. Remove the fuel tank & canister assembly (A).
    G13436678Courtesy of KIA MOTORS AMERICA, INC.

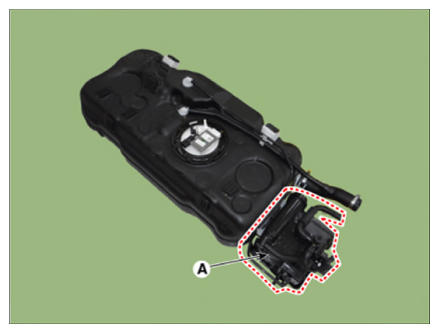

  14. Remove the canister assembly (A).

    (Refer to Emission Control System - "CANISTER ")

    G13436679Courtesy of KIA MOTORS AMERICA, INC.
