Component Inspection

  1. Ignition "OFF", connect KDS to Data Link Connector (DLC).
  2. Ignition "ON". & engine "ON".
  3. Check the "Current Data" about related DTC with KDS.

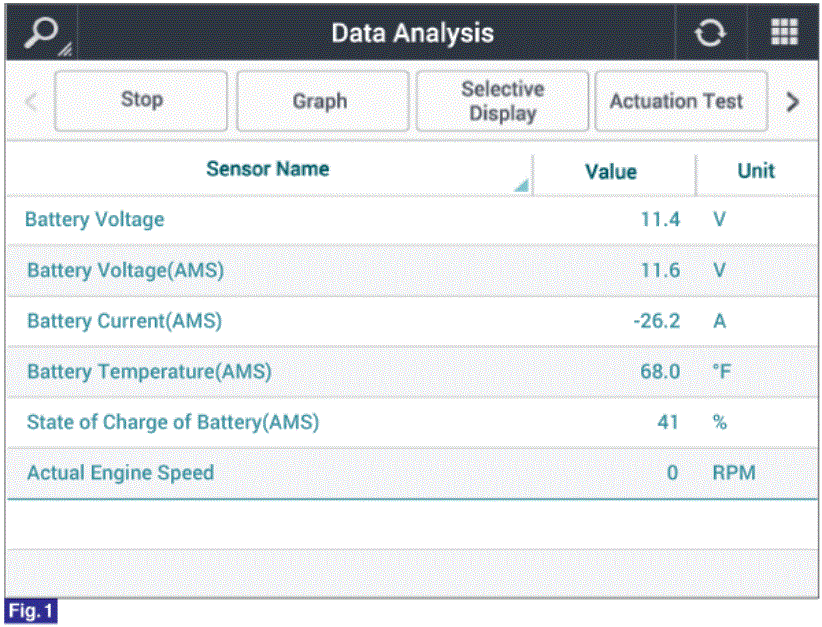

    G00591073Courtesy of KIA MOTORS AMERICA, INC.

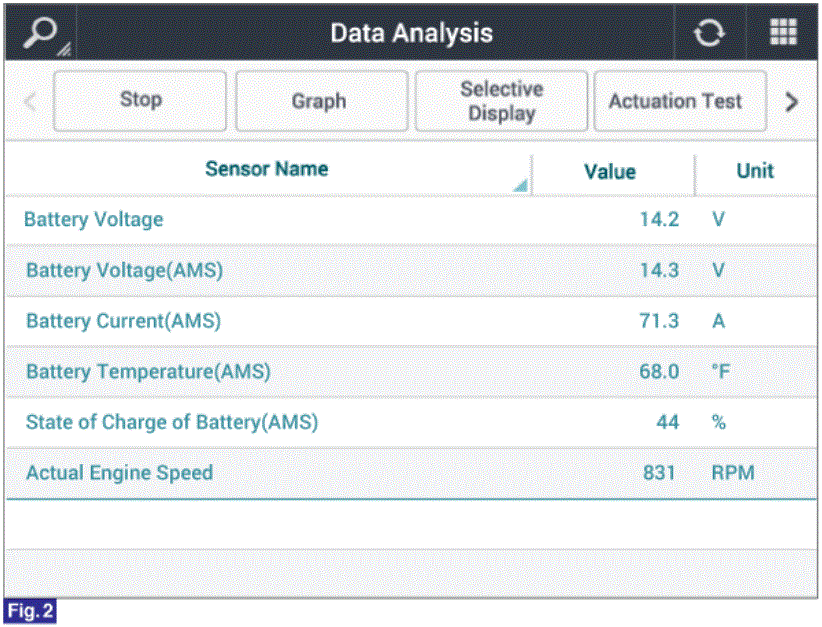

    G00591074Courtesy of KIA MOTORS AMERICA, INC.
  4. Is measured value within specification?

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If no problems were found with the circuits or connectors, replace the Battery Sensor and go to "VERIFICATION OF REPAIR " procedure.
