Monitor DTC Status
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON".

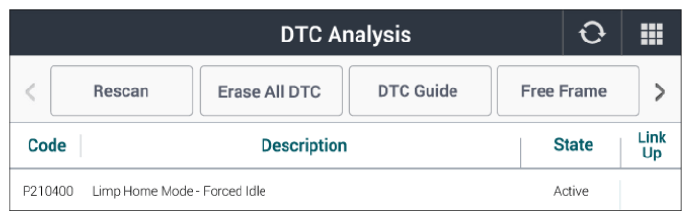

- Monitor "Diagnostic Trouble Codes(DTC)" with KDS.
- Is DTC status displayed as Present?
YES
- Performs the appropriate diagnostic procedure after checking other DTC.
- If the diagnostics have been performed correctly with no failure found, replace the ECM and then go to "VERIFICATION OF REPAIR " procedure.
NO
- Go to "VERIFICATION OF REPAIR " procedure.
