Circuit Diagram

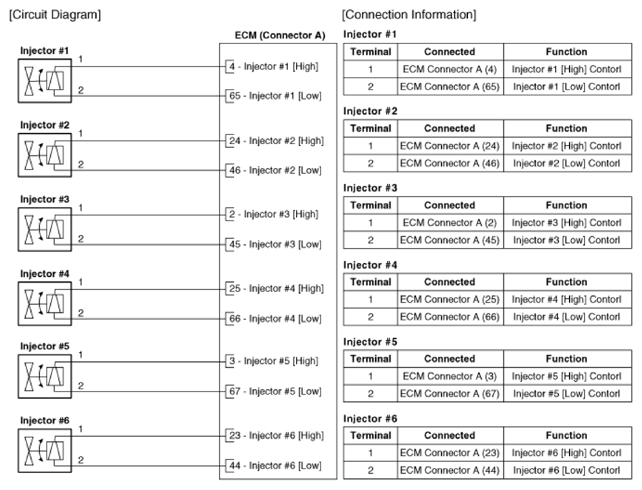

G13403456

Courtesy of KIA MOTORS AMERICA, INC.

Harness Connector

G13403457

Courtesy of KIA MOTORS AMERICA, INC.
