Repair Procedures: Installation

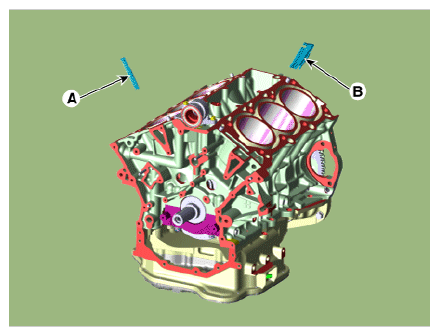

  1. Install the water jacket separator #1 (A), #2 (B).
    G13402760Courtesy of KIA MOTORS AMERICA, INC.

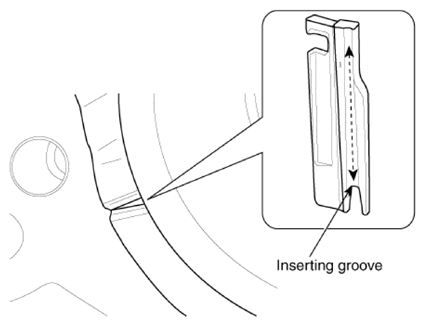

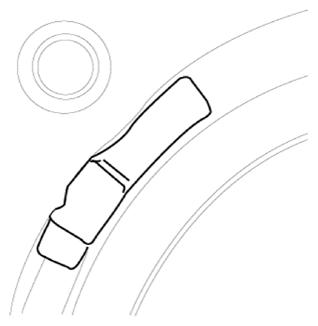

    NOTE: Insert the separator by aligning it with the block inner side protrusion. It must be below the cylinder head installing surface.
    G13402761Courtesy of KIA MOTORS AMERICA, INC.
    G13402762Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the LH/RH cylinder head assembly and gasket.

    (Refer to Cylinder Head Assembly - "CYLINDER HEAD ")
