Console Tray

  1. Disconnect the negative battery terminal.
  2. Remove the heater and A/C control unit.

    (Refer to Heating, Ventilation, Air conditioning - "HEATER & A/C CONTROL UNIT (DATC) ")

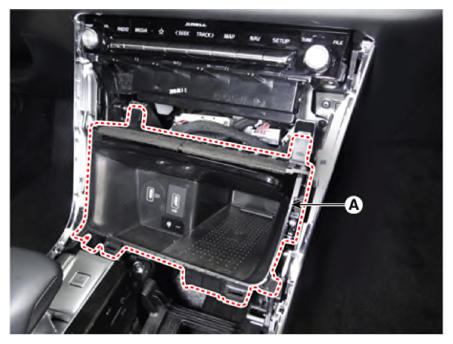

  3. Remove the console tray (A) by using a flat-tip screwdriver or remover.
    G13405171Courtesy of KIA MOTORS AMERICA, INC.

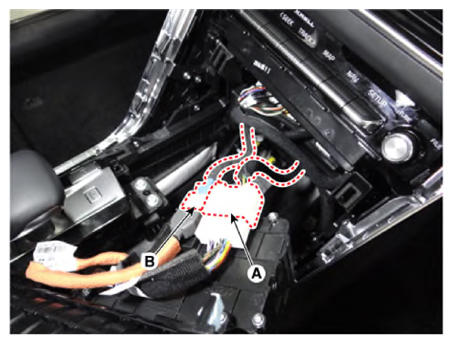

  4. Disconnect the extension connector (A) and multimedia jack connector (B).
    G13405172Courtesy of KIA MOTORS AMERICA, INC.

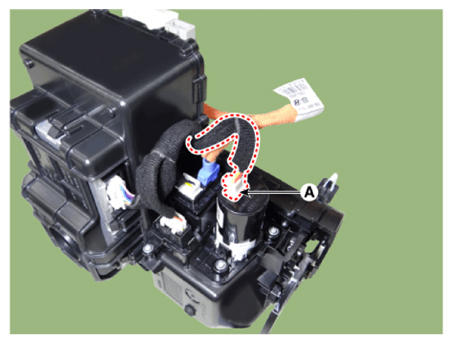

  5. Disconnect the USB charger connector (A).
    G13405173Courtesy of KIA MOTORS AMERICA, INC.

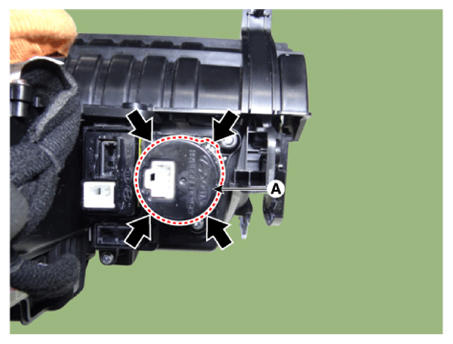

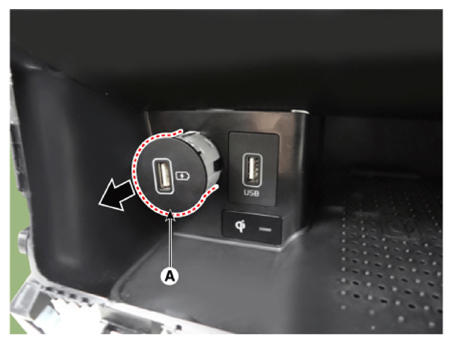

  6. Remove the USB charger (A) by pressing the hooks.
    G13405174Courtesy of KIA MOTORS AMERICA, INC.
    G13405175Courtesy of KIA MOTORS AMERICA, INC.
