Connector and Terminal Function

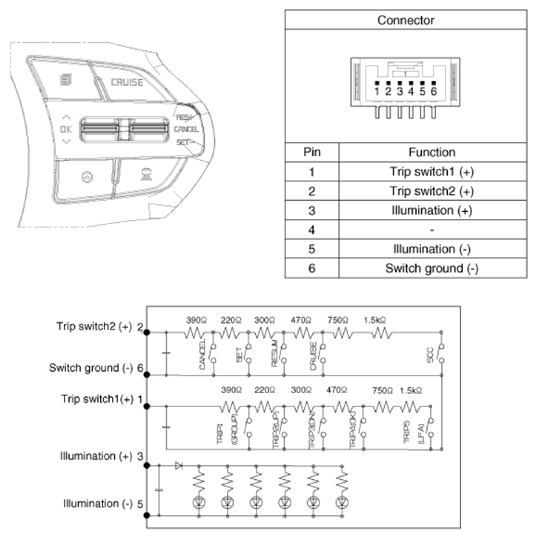

Fig 1: Smart Cruise Control (SCC) Switch Connector End View And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
