Circuit Diagram

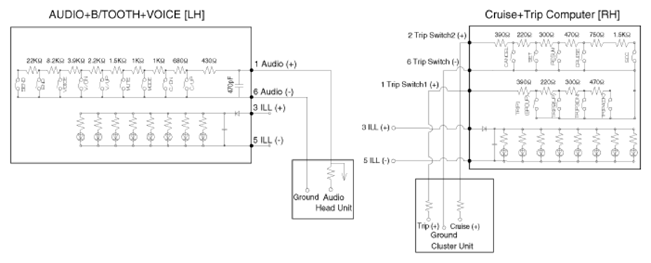

G13403182Courtesy of KIA MOTORS AMERICA, INC.

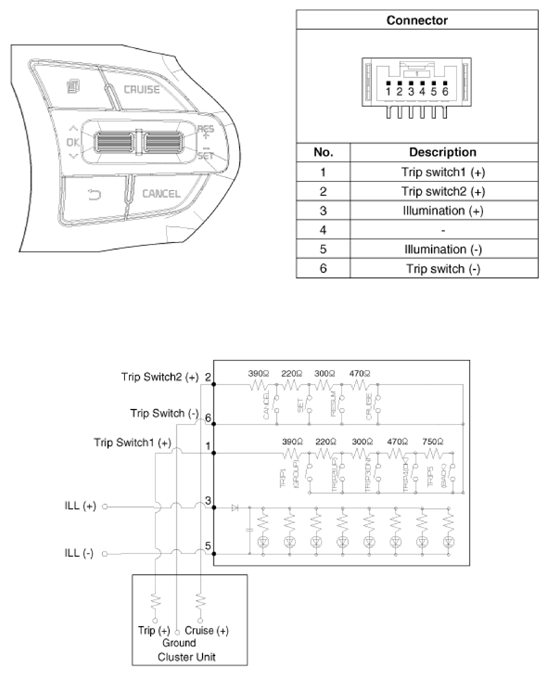

G13403183Courtesy of KIA MOTORS AMERICA, INC.

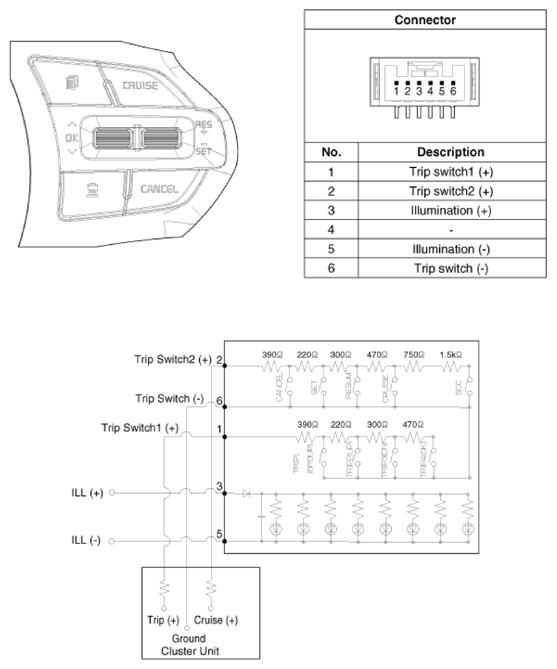

G13403184Courtesy of KIA MOTORS AMERICA, INC.
