Monitor DTC Status
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON".

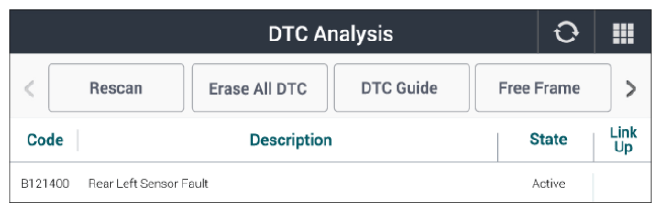

- Monitor "Diagnostic Trouble Codes(DTC)" with KDS.
- Is DTC status displayed as Present?
YES
- Go to "SYSTEM INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in "BCM" or Parking Assist System (PAS) Sensor - Rear Left Sensor's connector or was repaired and "BCM" memory was not cleared.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
