Components Location

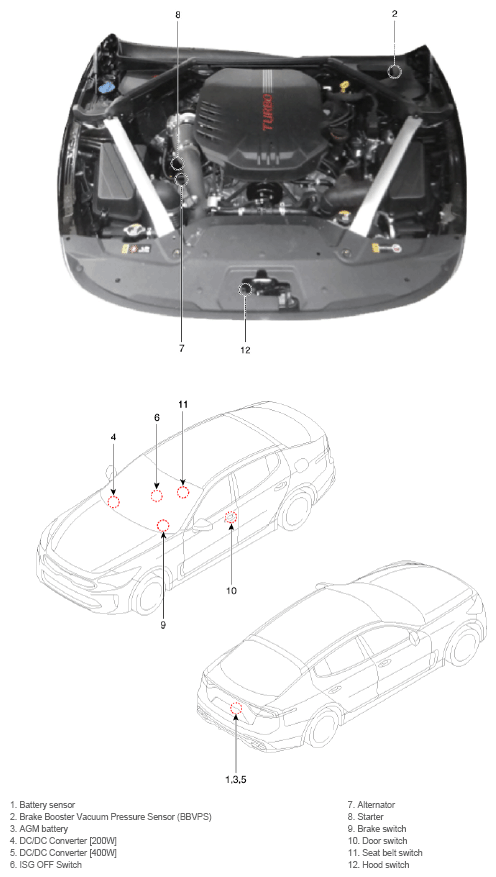

G12803590Courtesy of KIA MOTORS AMERICA, INC.

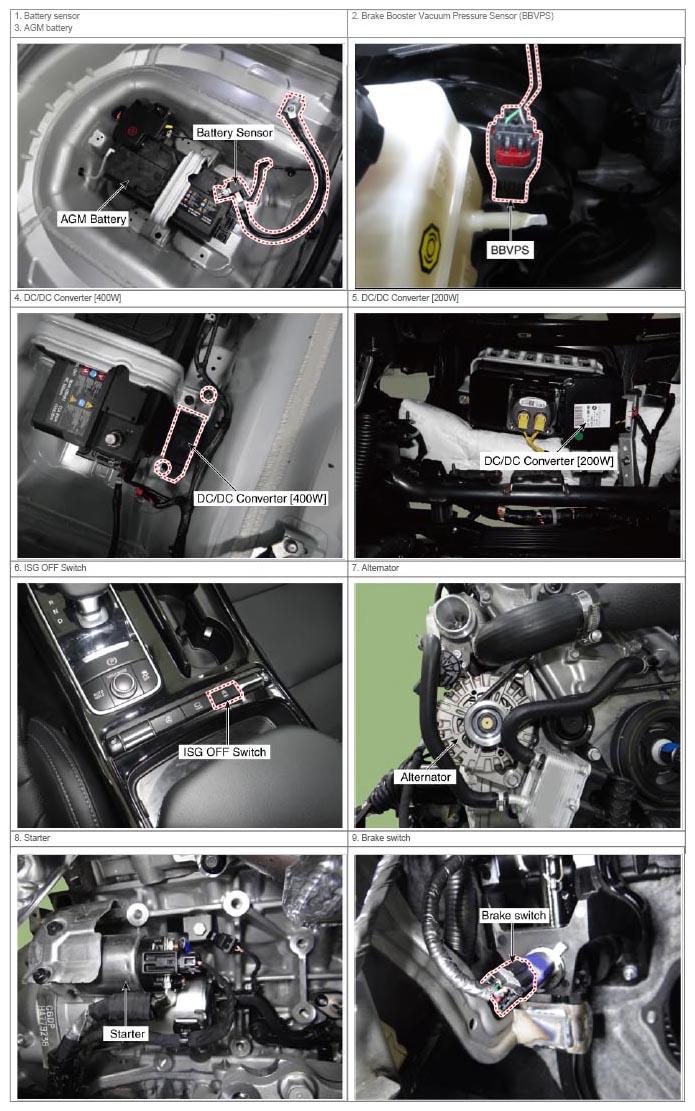

G12803591Courtesy of KIA MOTORS AMERICA, INC.

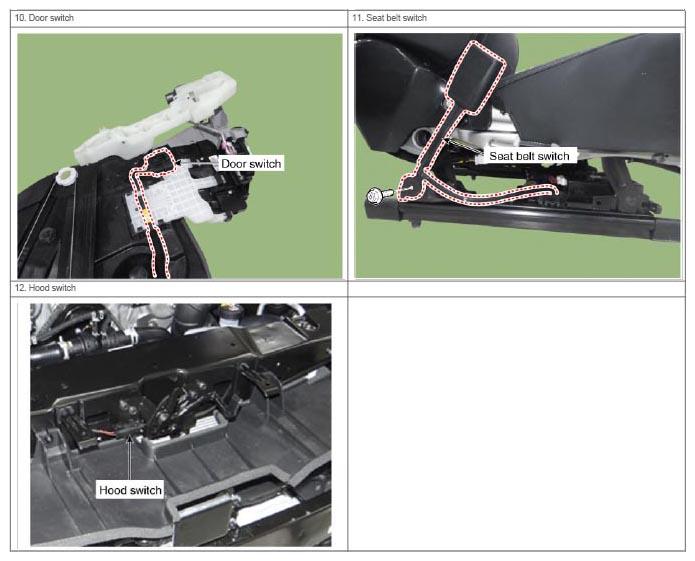

G12803592Courtesy of KIA MOTORS AMERICA, INC.
