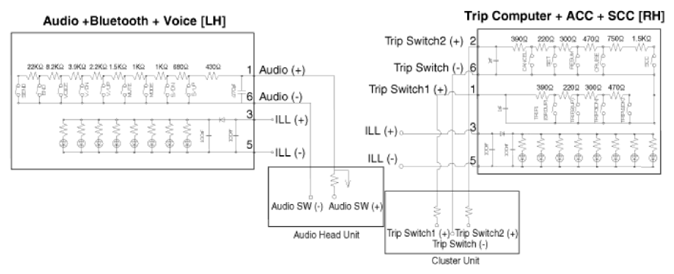

Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

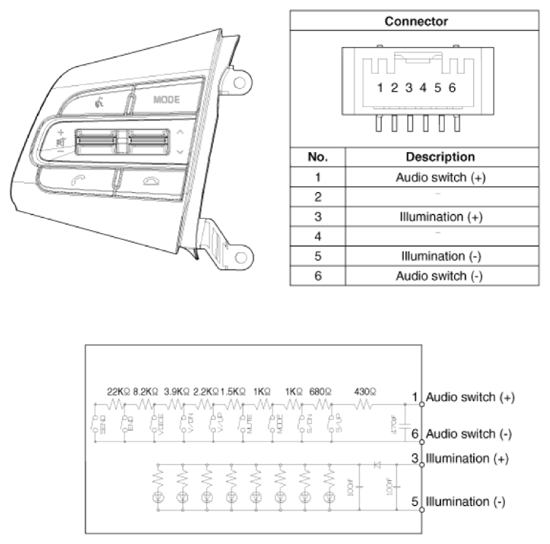

[Audio + Bluetooth + Voice]
Courtesy of KIA MOTORS AMERICA, INC.

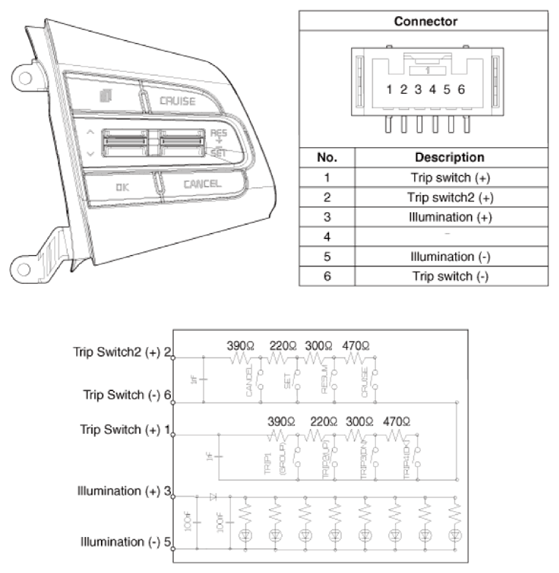

[Trip + ACC]
Courtesy of KIA MOTORS AMERICA, INC.

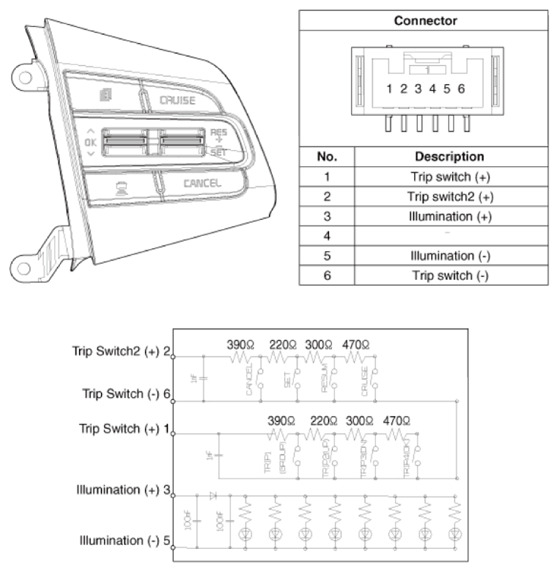

[Trip + ACC + SCC]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
