Removal And Installation
WARNING: This page is about a different car, the 2018 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the cooling fan.
(Refer to Cooling System - "COOLING FAN ")
- Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")

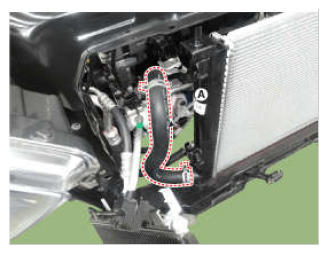

- Disconnect the radiator lower hose (A).NOTE:

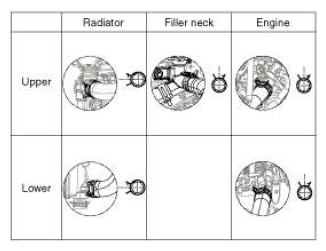

- When installing radiator hoses, install as displayed in images.
- Disconnect the ATF cooler hoses (A). [AT Only]

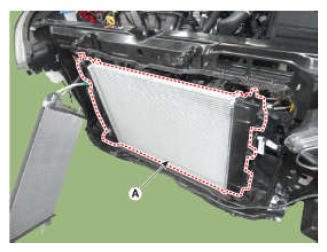

- Remove the radiator assembly (A).
- Install in the reverse order of removal.
- Fill with engine coolant.
(Refer to Cooling System - "COOLANT ")
- Start engine and check for leaks.
- Recheck engine coolant level.
