Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX HOUSING ")

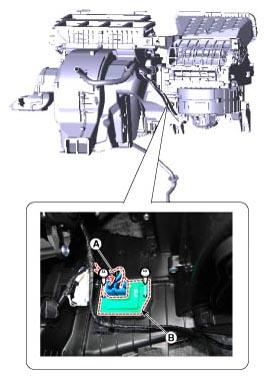

  3. Disconnect the connector (A) and then remove the field effect transistor (B) after loosening the mounting screws.
    G12885240Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
