Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System - 2.4L
>>
Heated Oxygen Sensor (HO2S)
>>
Schematic Diagrams
>>

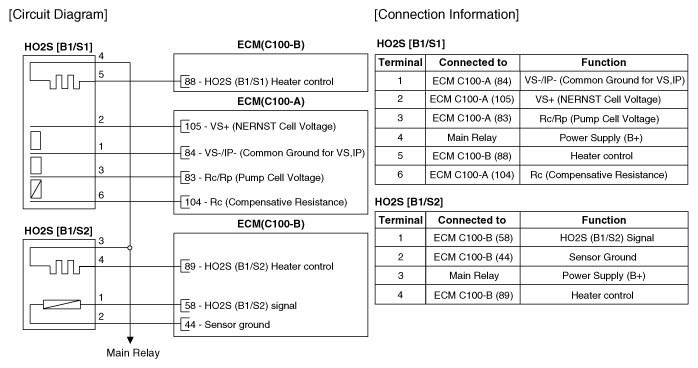

Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
