Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Power Windows
>>
Power Window Switch
>>
Schematic Diagrams
>>

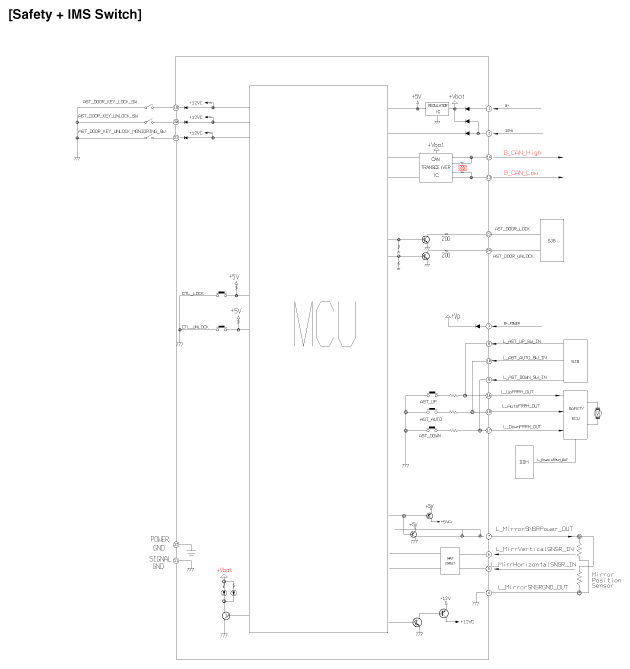

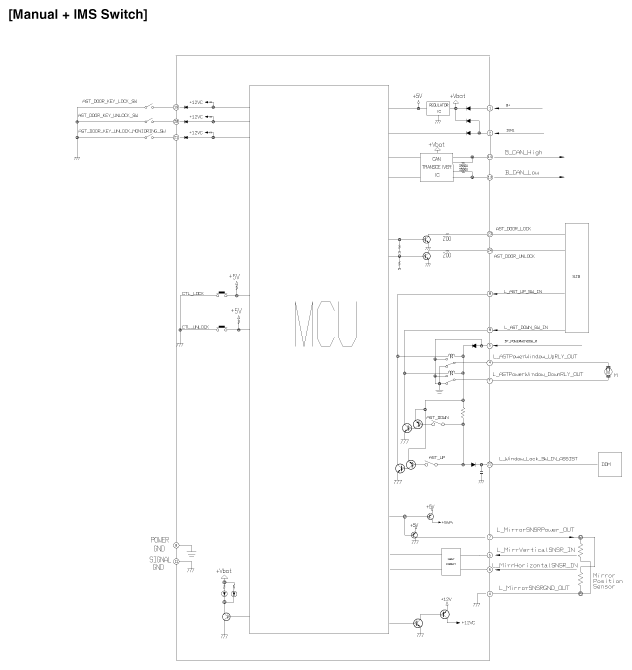

Assist Power Window Switch
>>
[Assist Power Window Module (ADM)]
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
[Assist Power Window Module (ADM)]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
