Variant Coding

  1. Perform FCA variant coding

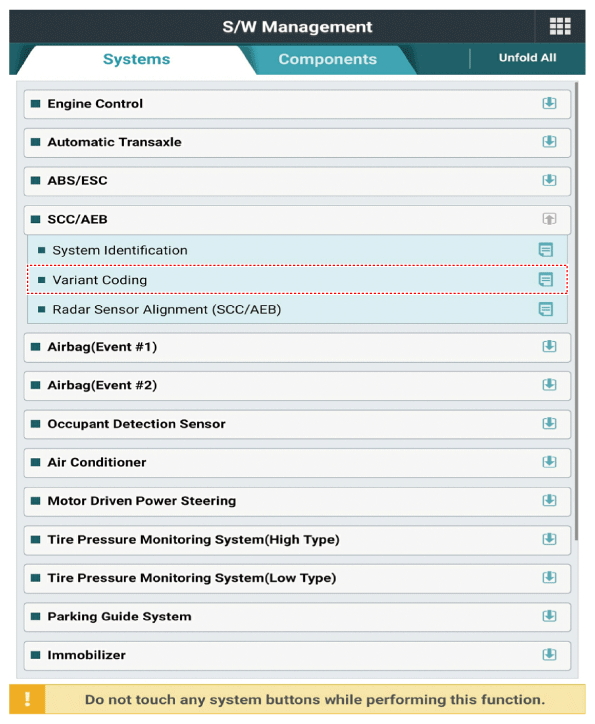

G12858887Courtesy of KIA MOTORS AMERICA, INC.

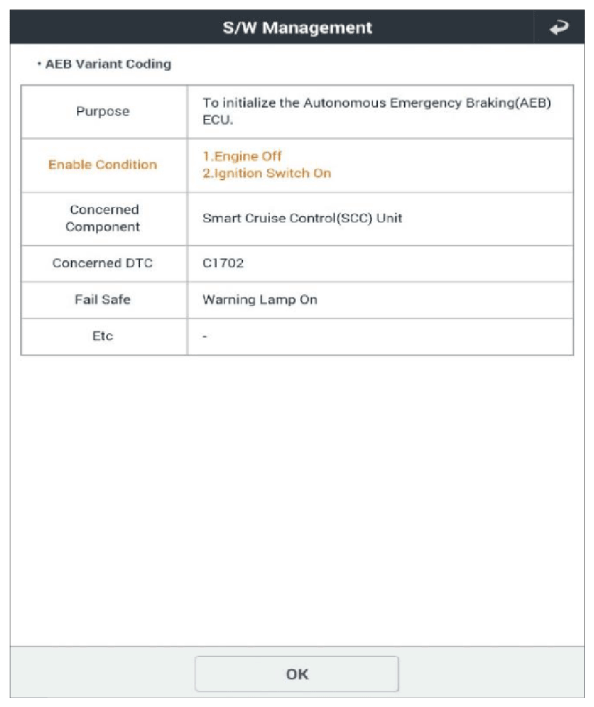

G12858888Courtesy of KIA MOTORS AMERICA, INC.
Item Option Remark
Drivetrain option 0 = 2WD
1 = 4WD
Transmission Option 0 = AT
1 = MT
Driver Seat Position 0 = LHD
1 = RHD
SCC Enable Option 0 = Disable
1 = Enable		 SCC Option = 1
NAVI SCC Option 0 = Disable
1 = Enable		 NAVI Option & SCC Option 1
HAD Option 0 = Disable
1 = Enable		 0 Fixing
FCA Option 0 = Disable
1 = Enable		 FCA Option = 1

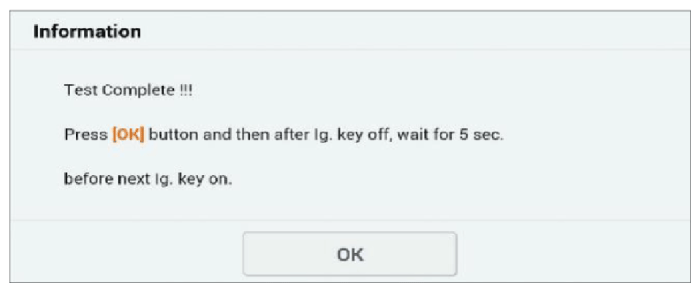

G12858889Courtesy of KIA MOTORS AMERICA, INC.
