Compensation Requirement and Procedure
- Simultaneous replacement of 4WD ECU (Controller) and coupling
- Does not require compensation.
- Replacement of coupling only

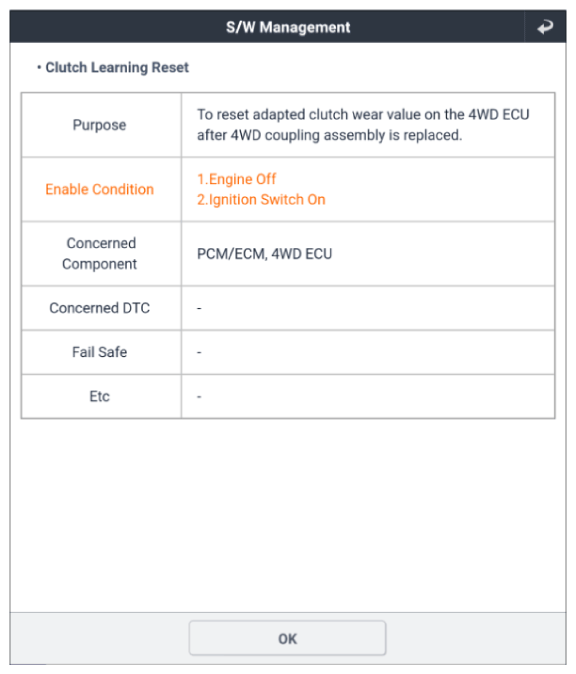

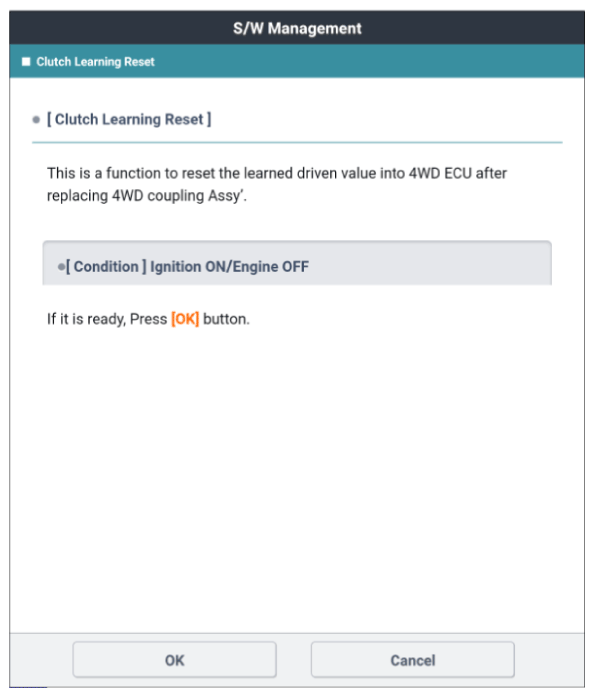

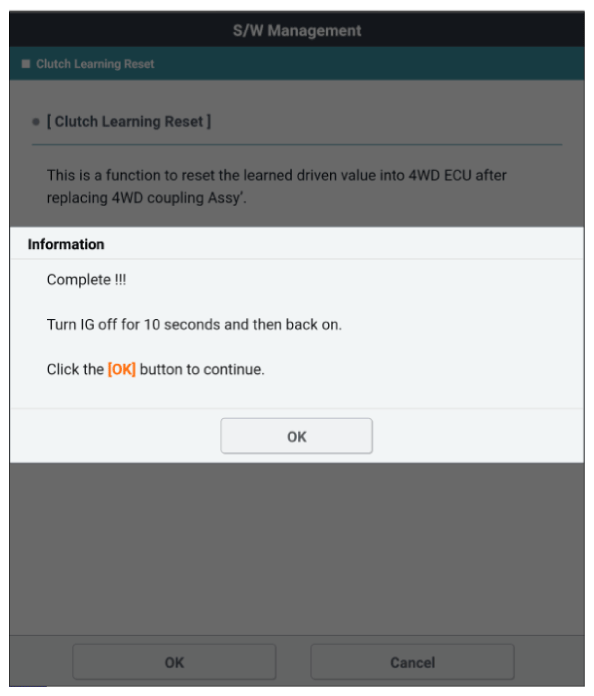

- Reset the 4WD ECU"s (Controller) clutch learning.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
- Replacement of 4WD ECU (Controller) only

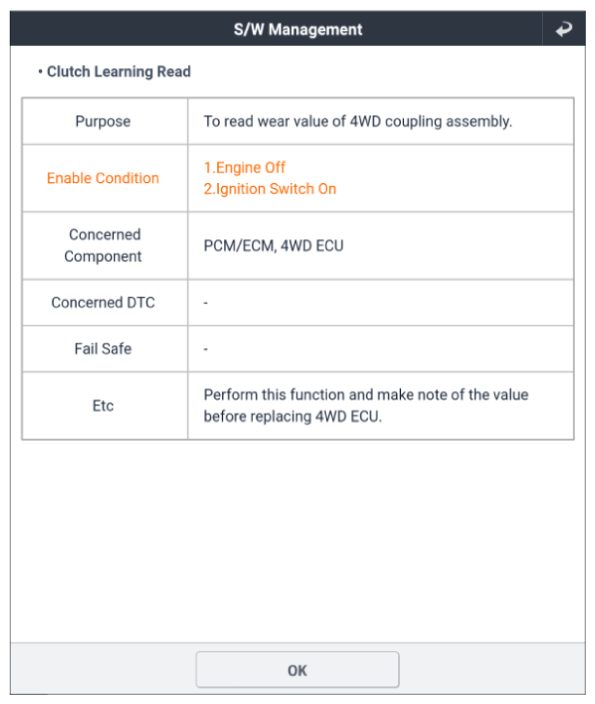

- Before replacement: Check the ECU"s clutch learning.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|

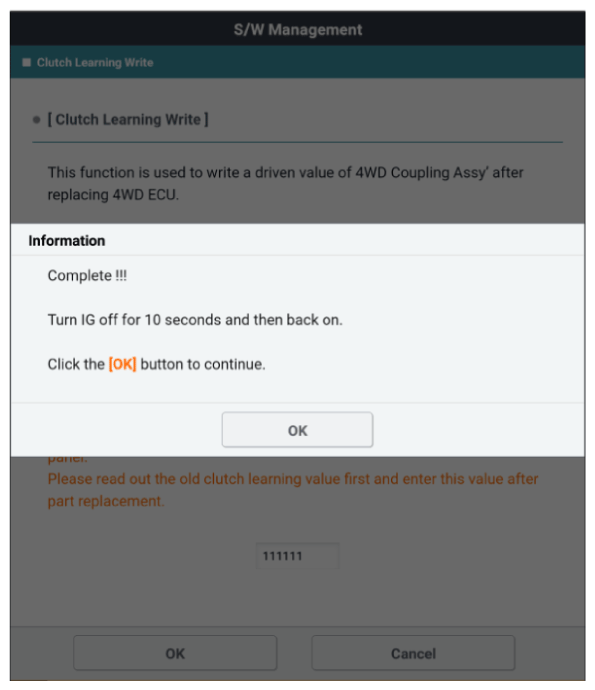

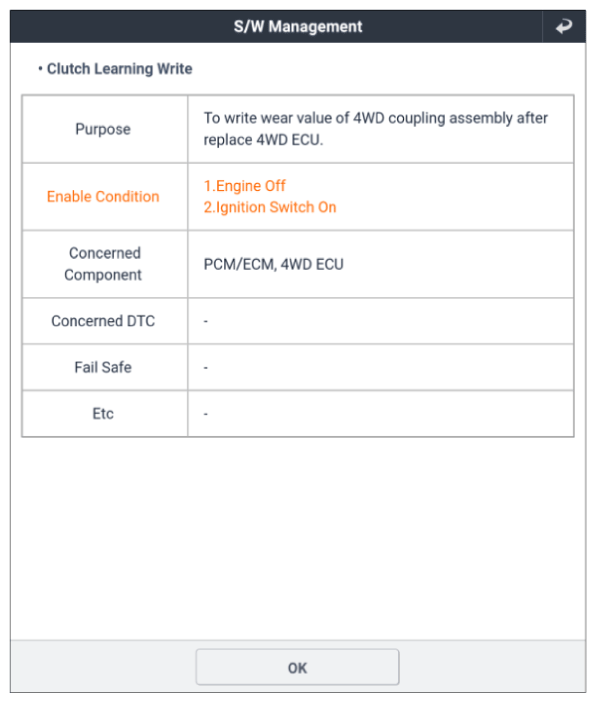

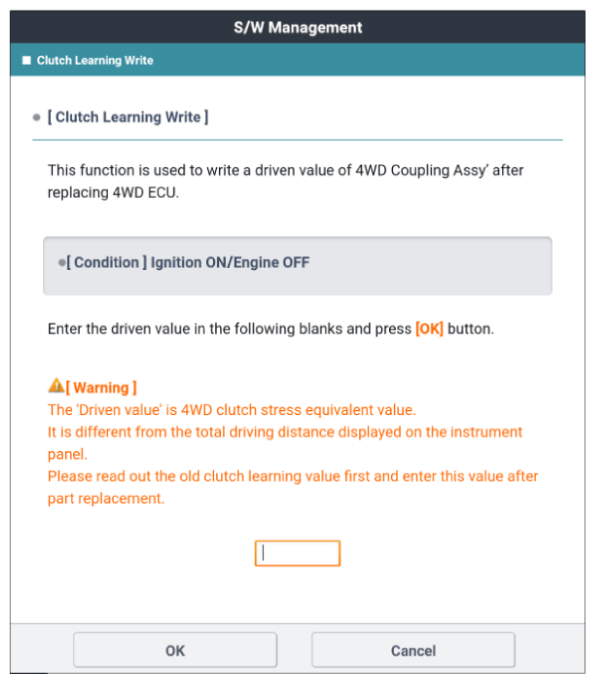

- After replacement: Enter the original ECU"s clutch learning into the replacement ECU.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
