Vehicle S/W Management
- Ignition switch "OFF"
- Connect KDS to Data Link Connector (DLC).
- Ignition switch "ON" & Engine "OFF"

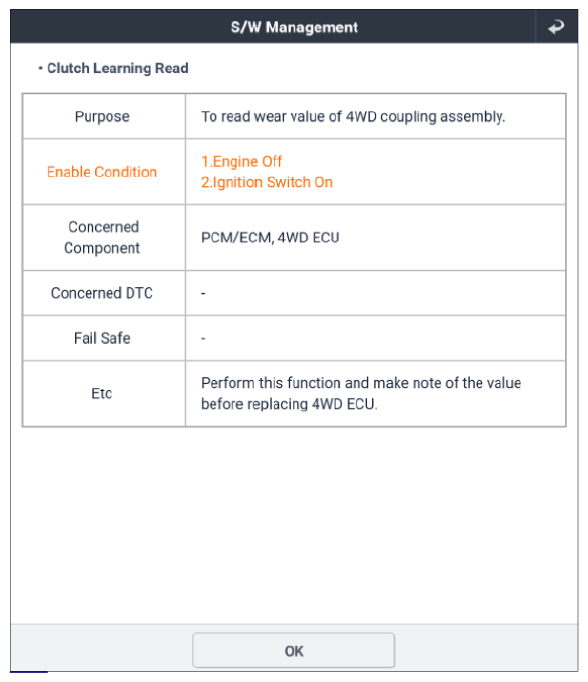

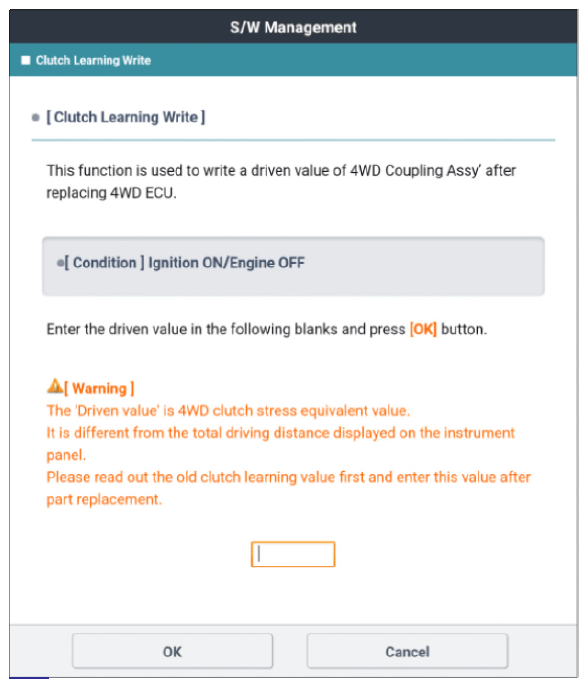

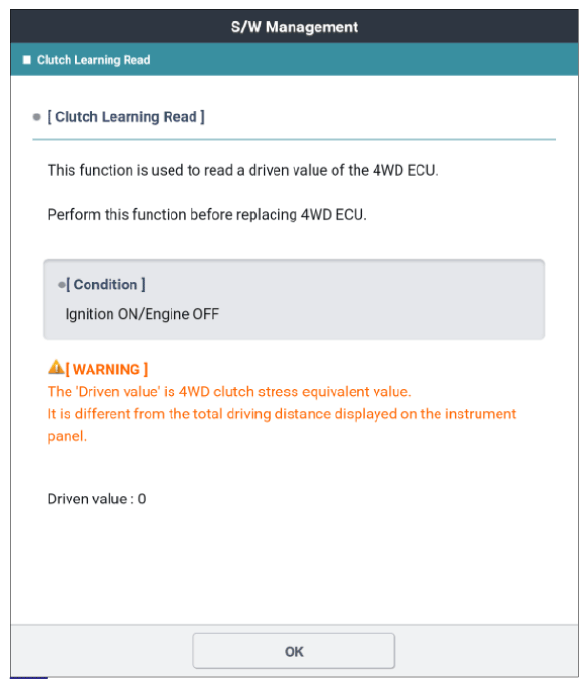

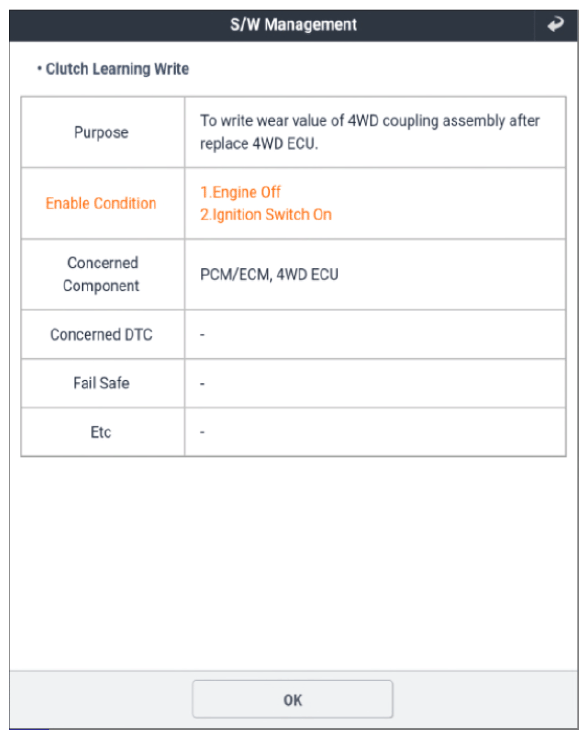

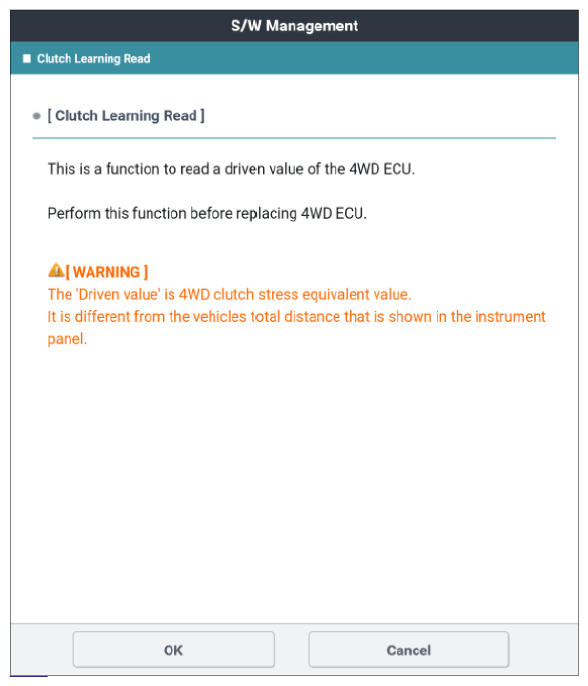

- Select the "Vehicle S/W management" about related DTC with KDS.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
