Monitor DTC Status
WARNING: This page is about a different car, the 2020 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

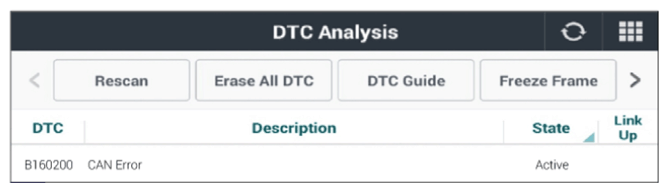

Figure below |
Active Fault
- Go to "WIRING INSPECTION " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in "BCM"'s connector or was repaired and "BCM" memory was not cleared after repair.
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.
