Repair Procedures: Remove

WARNING: This page is about a different variant/trim than selected.

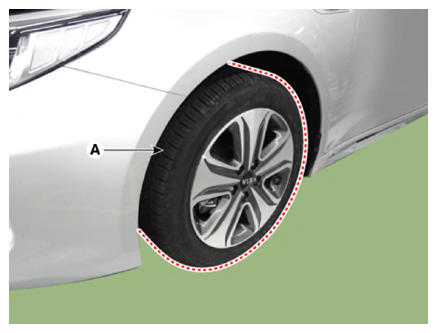

  1. Remove the wheel & tire (A).

    Tightening torque:

    88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

    G13157003Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

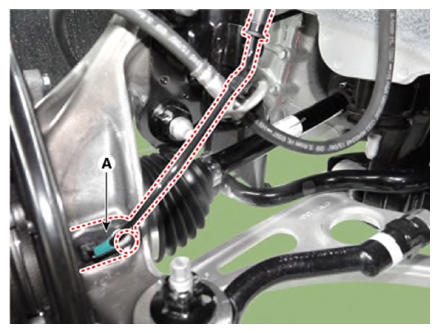

  2. Remove the front wheel speed sensor mounting bolt (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

    G13157004Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front wheel house cover.

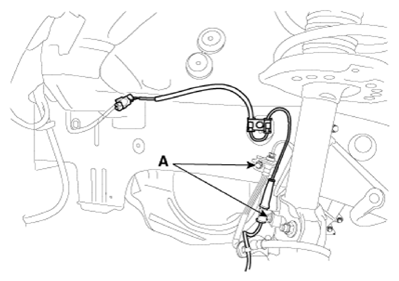

  4. Remove the mounting bolts (A).
    G13157005Courtesy of KIA MOTORS AMERICA, INC.

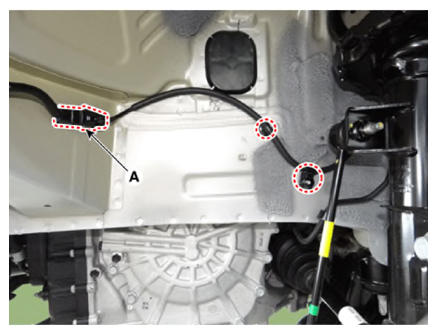

  5. Disconnect the front wheel speed sensor connector (A), then remove the front wheel speed sensor.
    G13157006Courtesy of KIA MOTORS AMERICA, INC.
