Repair Procedures: Remove

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower cover,

    (Refer to Body - "CRASH PAD ")

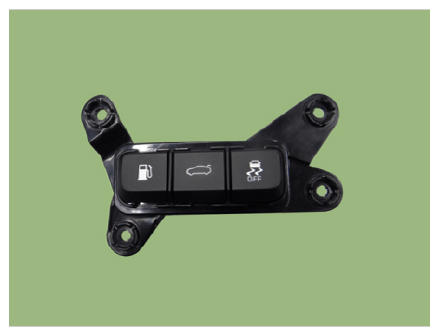

  3. Disconnect the crash pad side switch assembly.
    G13156996Courtesy of KIA MOTORS AMERICA, INC.

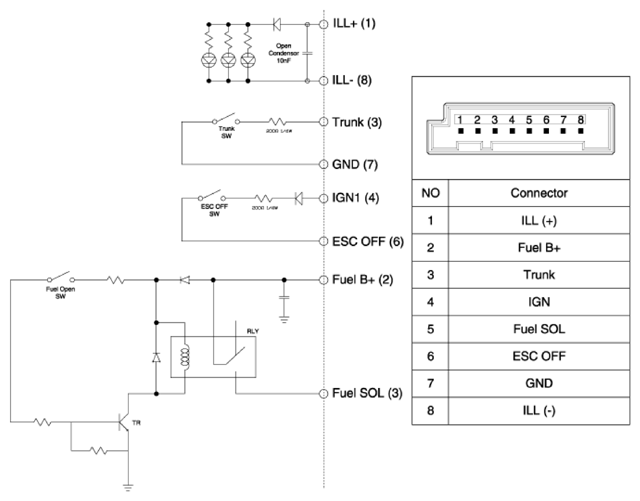

  4. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    G13156997Courtesy of KIA MOTORS AMERICA, INC.
