Components Location
WARNING: This page is about a different variant/trim than selected.

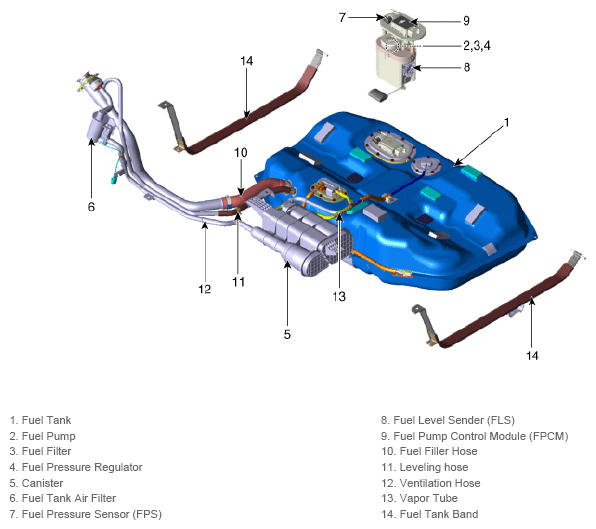

[Fuel Tank]
 Courtesy of KIA MOTORS AMERICA, INC.
|

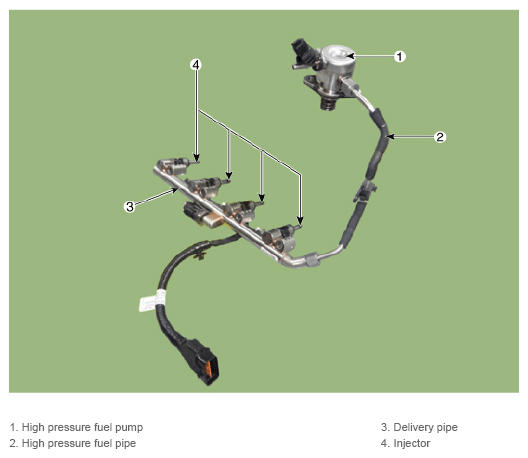

[High Pressure Fuel Line]
 Courtesy of KIA MOTORS AMERICA, INC.
|
WARNING:
In case of removing the high pressure fuel pump, high pressure fuel pipe, delivery pipe, and injector, there may be injury caused by leakage of the high pressure fuel. So don't do any repair work right after engine stops.
