Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.

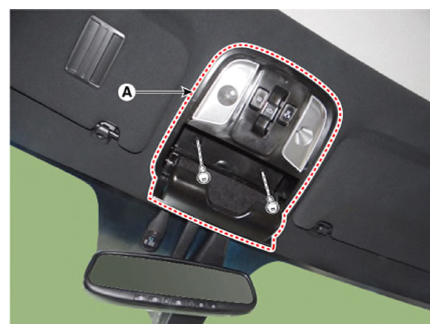

- Remove the two mounting screws.
Then, remove the overhead console (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|

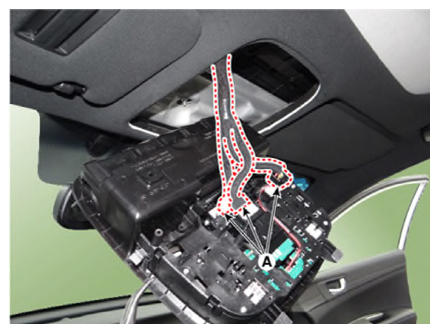

- Remove the overhead console after disconnecting the connectors (A).
 Courtesy of KIA MOTORS AMERICA, INC.
|
