Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Optima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air duct and air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the EEGR control valve connector (A).

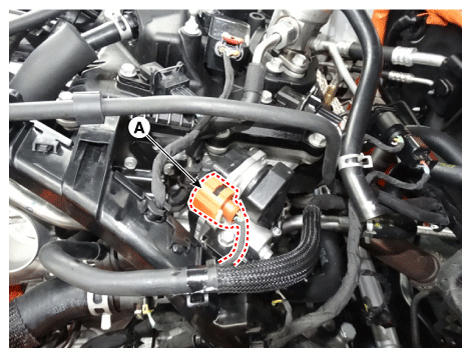

    Fig 1: Locating EEGR Control Valve Connector
    G12309004Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the EEGR control valve (B) after removing the mounting bolt (A).

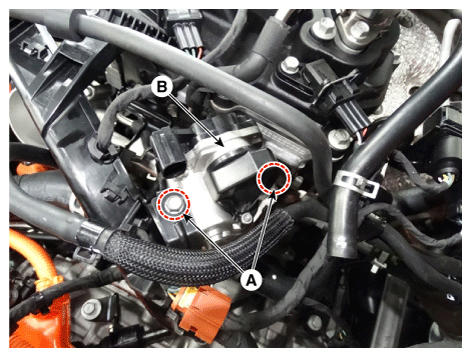

    Fig 2: Locating EEGR Control Valve With Mounting Bolt
    G12309005Courtesy of KIA MOTORS AMERICA, INC.
