Circuit Inspection

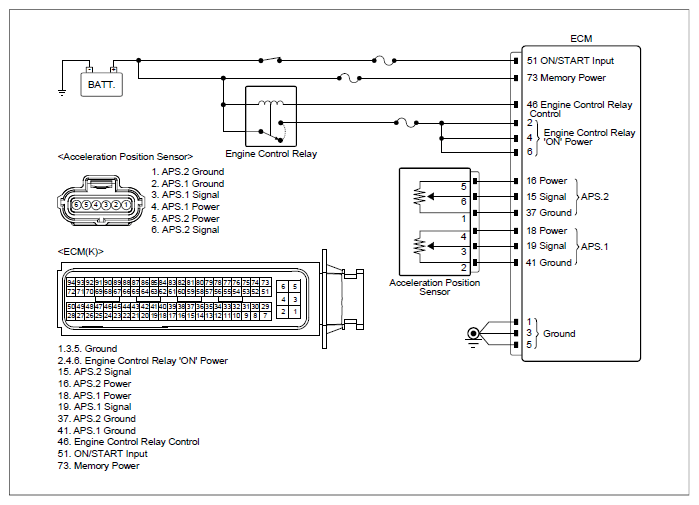

G12692811

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the battery (-) cable. Disconnect the electrical connector(s) from the component and ECM.	Acceleration Position Sensor #2 connector	1 (ground)	ECM connector	37 (ground)	Approx. below 1 Ω
	Acceleration Position Sensor #2 connector	5 (power)	ECM connector	16 (power)	Approx. below 1 Ω
	Acceleration Position Sensor #2 connector	6 (signal)	ECM connector	15 (signal)	Approx. below 1 Ω
	Acceleration Position Sensor #2 connector	6 (signal)	Chassis ground	-	∞ (infinite)Ω
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Acceleration Position Sensor #2 connector	1 (ground)	Chassis ground	-	Approx. 5V
	Acceleration Position Sensor #2 connector	5 (power)	Chassis ground	-	Approx. 0V
	Acceleration Position Sensor #2 connector	6 (signal)	Chassis ground	-	Approx. 0V

Good

If no problems were found with the circuits or connectors, replace the Acceleration Position Sensor and go to "VERIFICATION OF REPAIR " procedure.

No Good

Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
