Smart Key Unit

WARNING: This page is about a different car, the 2020 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the BCM.

    (Refer to Body Control Module - "REMOVAL ")

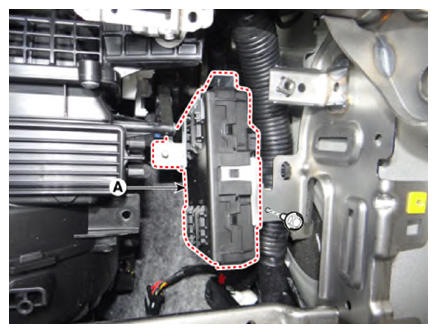

  2. Remove the smart key unit (A) by loosening the bolt.
    G13438942Courtesy of KIA MOTORS AMERICA, INC.

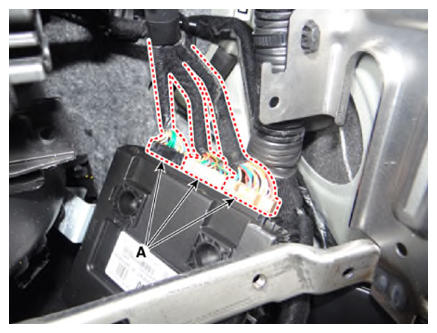

  3. Disconnect the connectors (A) from the smart key unit.
G13438943Courtesy of KIA MOTORS AMERICA, INC.
