Components Location

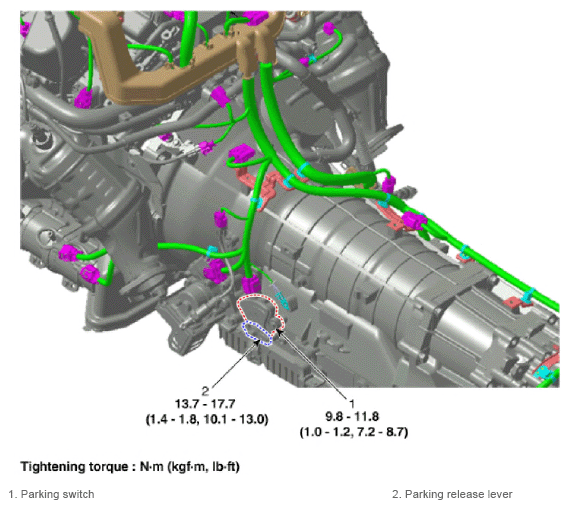

Fig 1: Parking Switch Components With Torque Specification
G13143643Courtesy of KIA MOTORS AMERICA, INC.
