Components And Components Location: Components: [AWD]

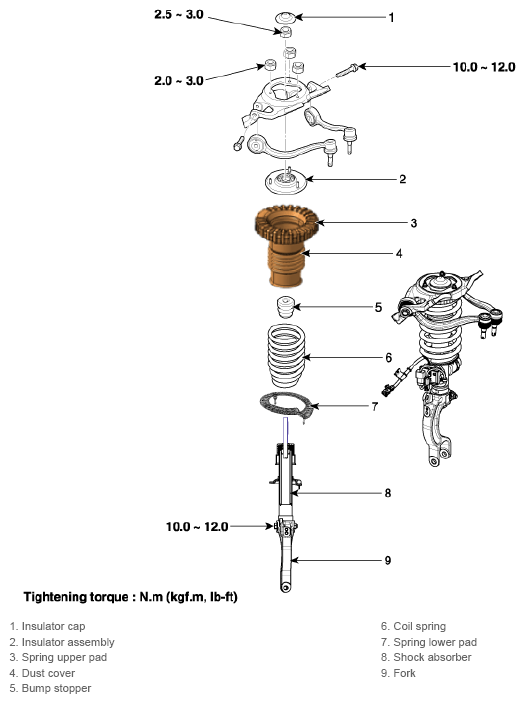

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specification (AWD)
G13144285Courtesy of KIA MOTORS AMERICA, INC.
