Components And Components Location: Components: [2WD]

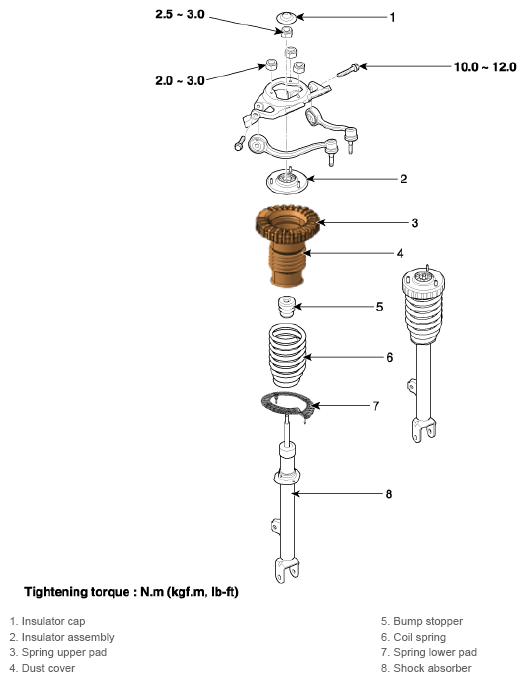

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specification (2WD)
G13144284Courtesy of KIA MOTORS AMERICA, INC.
