Components Location

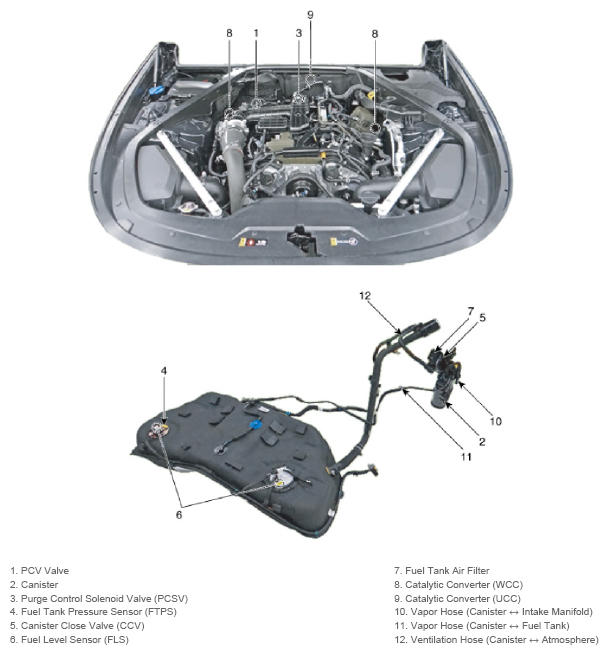

G13143206Courtesy of KIA MOTORS AMERICA, INC.

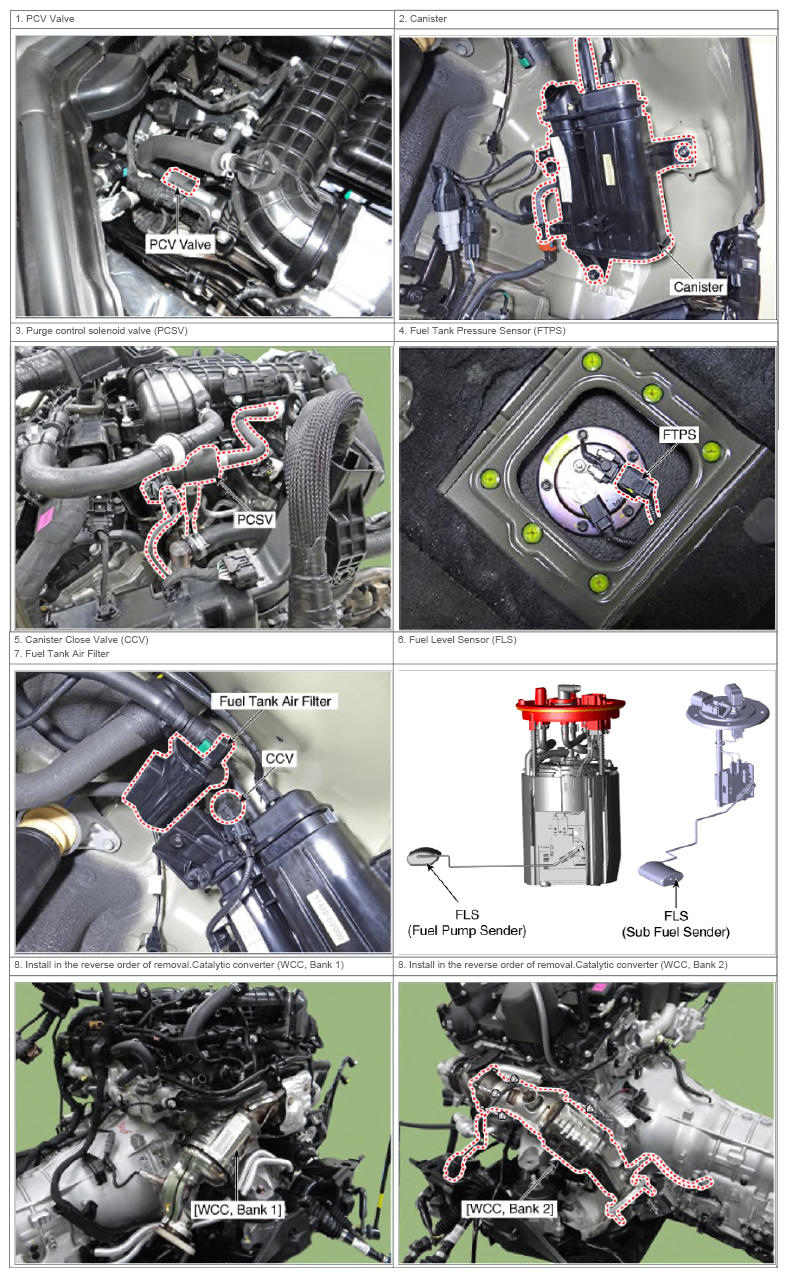

G13143207Courtesy of KIA MOTORS AMERICA, INC.

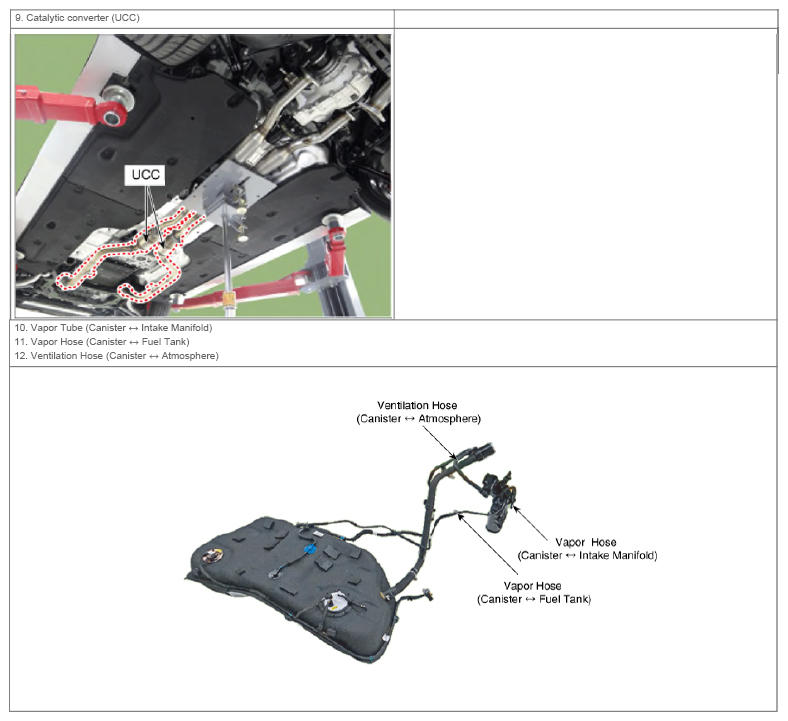

G13143208Courtesy of KIA MOTORS AMERICA, INC.
