System Diagram

WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.

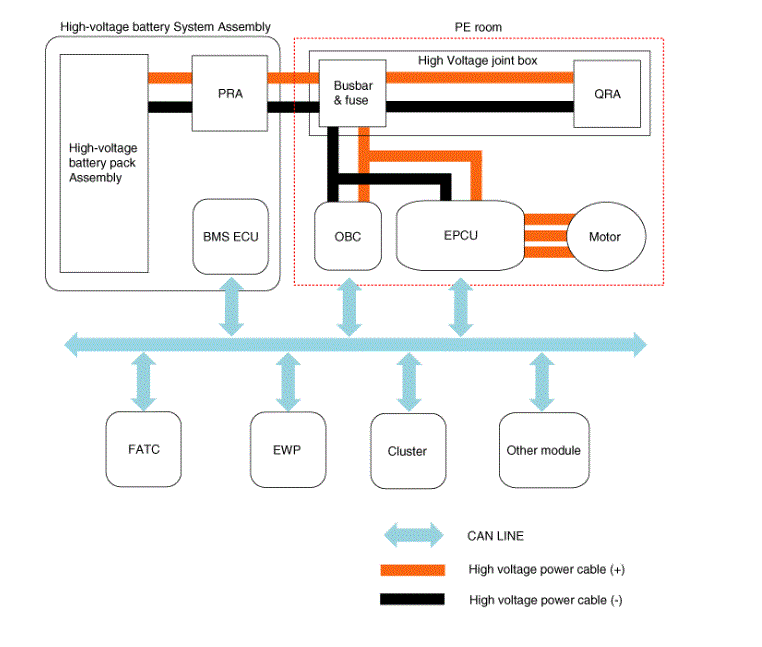

G12822968Courtesy of KIA MOTORS AMERICA, INC.

Information

OBC: ON-Board Charger

QRA: Quick Charge Relay Assembly

PRA: Power Relay Assembly

EWP: Electronic Water Pump

EPCU: Electronic Power Control Unit [LDC + Inverter + VCU]
