Component Inspection

Inspection Condition	Inspection Procedure	Reference

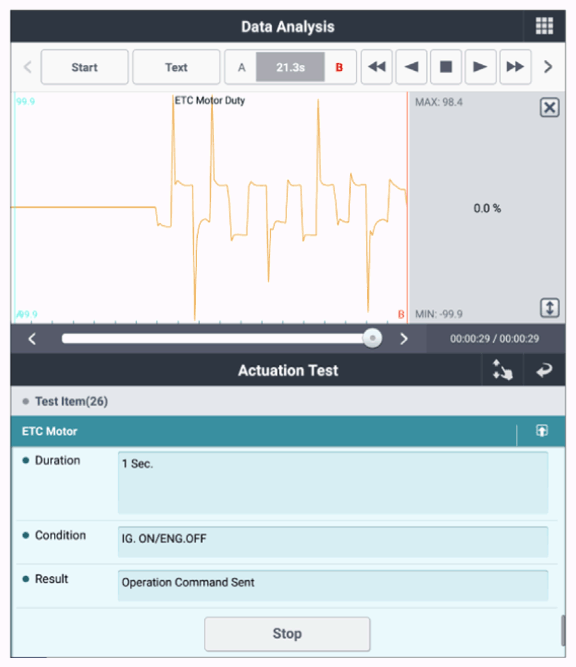

Ignition "ON" and engine "OFF".	Connect KDS to Data Link Connector (DLC). Monitor parameters in "Current Data" with KDS.	Figure

Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the ETC Motor and go to "VERIFICATION OF REPAIR " procedure.
