Components And Components Location: Components

[Gasoline 2.0]

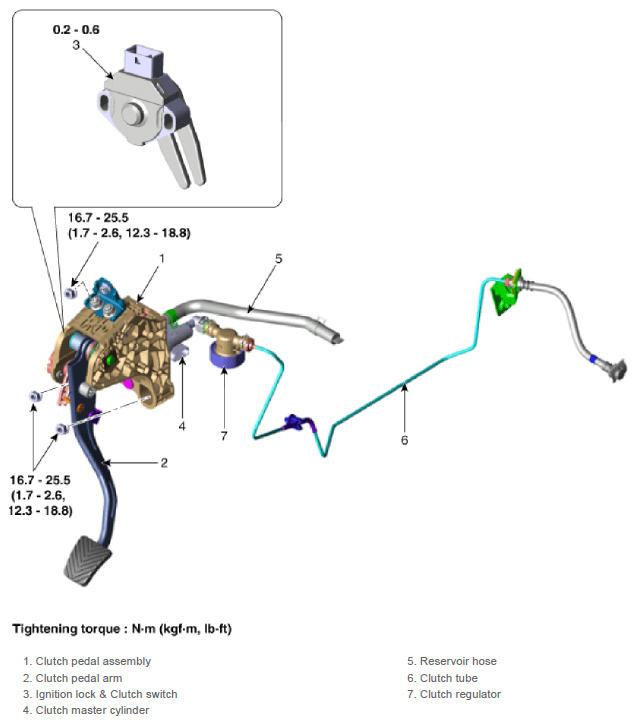

Fig 1: Clutch Pedal Components Location With Torque Specification (Gasoline 2.0)
G12830389Courtesy of KIA MOTORS AMERICA, INC.
