Home
>>
Kia
>>
2019
>>
Forte FE, Standard Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control System
>>
Cruise Control Switch
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

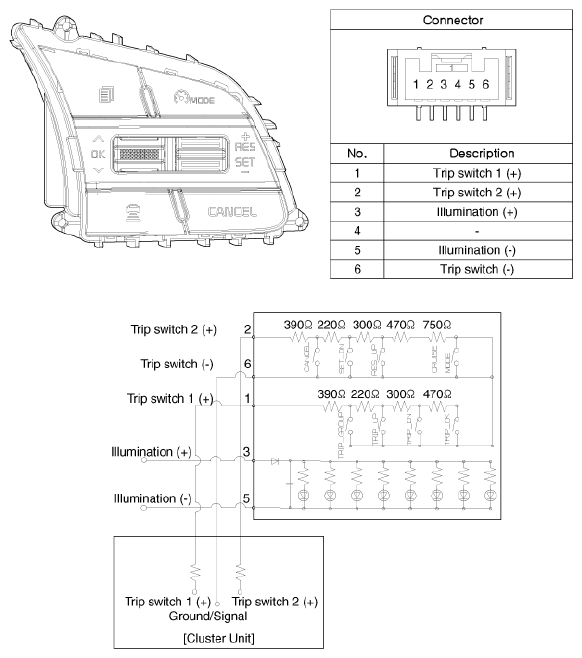

Circuit Diagram
[Trip + SCC]
Courtesy of KIA MOTORS AMERICA, INC.
