Monitor KDS status
WARNING: This page is about a different car, the 2019 Kia Soul EV. However, it is still accessible from the selected car via links, so may be relevant.
- Connect KDS to Data Link Connector (DLC).
- Ignition "ON" (Power Button LED "Red")
- Monitor "Diagnostic Trouble Codes (DTC)
" with KDS.

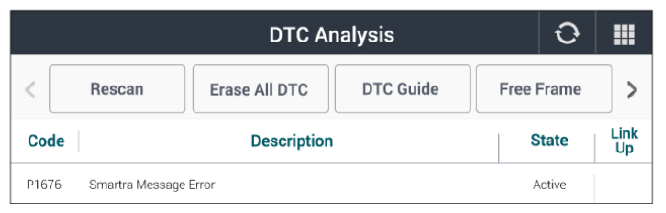

Figure) Diagnostic Trouble Code (DTC) is shown in the illustration above.
- Is DTC status displayed as Present?
YES
- Go to "MONITOR KDS DATA " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
