Front Turn Signal Lamp Bulb

WARNING: This page is about a different car, the 2024 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

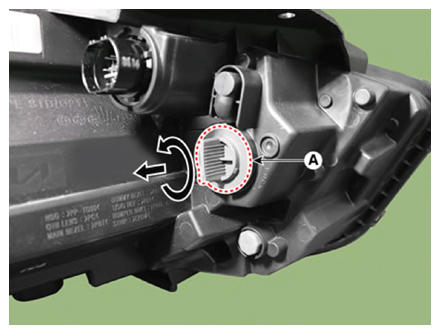

  2. Remove the front turn signal lamp socket (A) by turning in the counterclockwise direction
    G14563962Courtesy of KIA MOTORS AMERICA, INC.

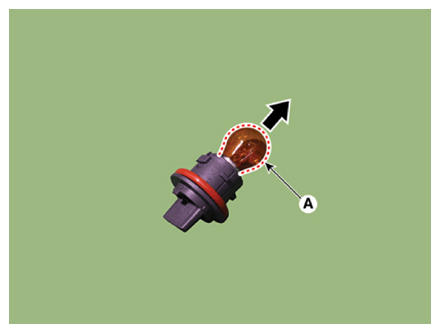

  3. Replace the front turn signal lamp bulb (A).
    G14563963Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse of the removal.
