Component Inspection

Inspection Condition	Inspection Procedure	Reference

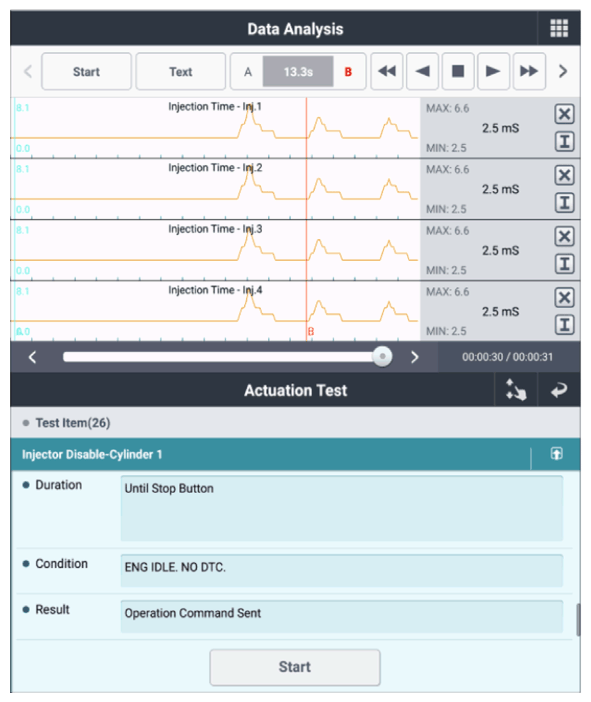

Ignition "ON" and engine "OFF". Engine "ON" and NO DTC.	Connect KDS to Data Link Connector (DLC). Perform "Actuation Test" of concerned component with KDS.	Figure

G12851050

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Reference
Inspection Condition	Connector	Terminal	Connector	Terminal	Reference

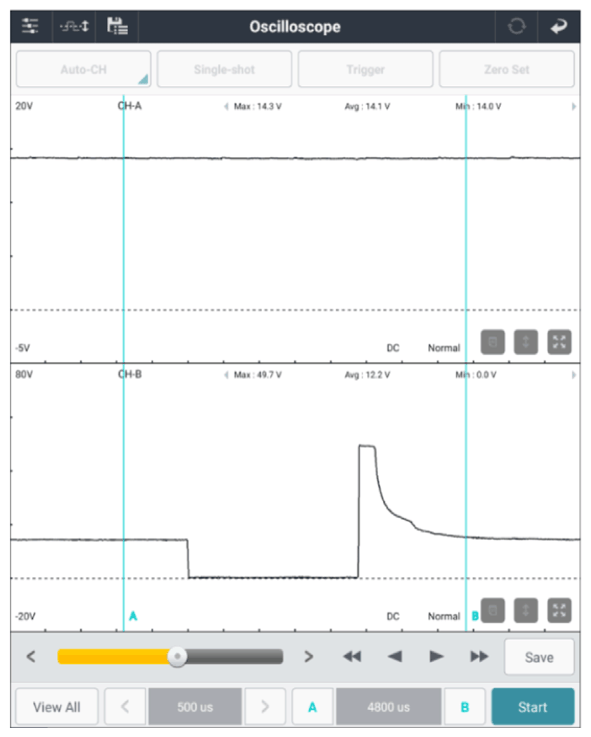

Ignition "ON", engine "ON".	Injector #1 harness connector	2 (power)	Chassis ground	-	Figure
Ignition "ON", engine "ON".	Injector #1 harness connector	1 (control)	Chassis ground	-	Figure

G12851051

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the Injector #1 and go to "VERIFICATION OF REPAIR " procedure.
