Removal and Installation

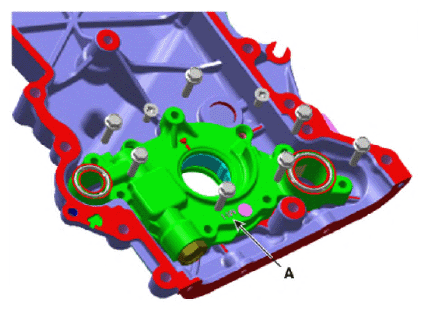

NOTE: Do not disassemble the oil pump (A) from timing chain cover because it is supplied as timing chain cover & oil pump assembly.
G12826452Courtesy of KIA MOTORS AMERICA, INC.
