Components & Components Location: Components

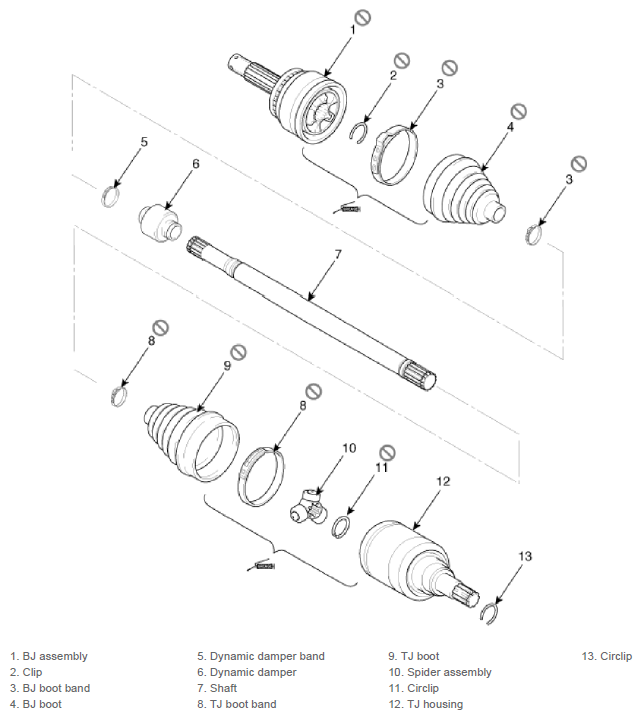

[RH]

G12830653Courtesy of KIA MOTORS AMERICA, INC.

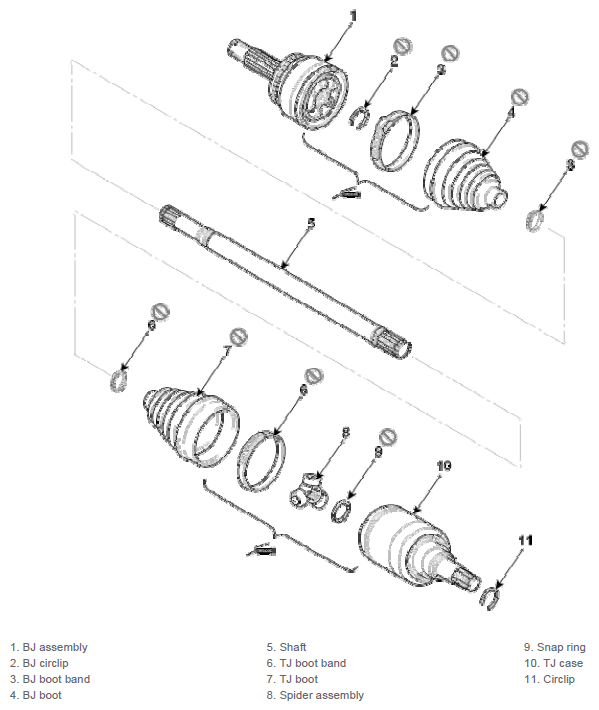

[LH]

G12830654Courtesy of KIA MOTORS AMERICA, INC.
