Components & Components Location: Components

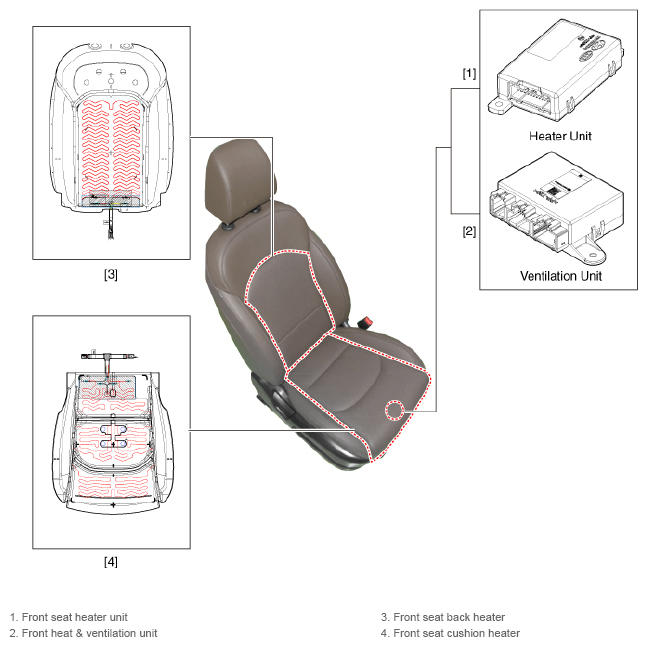

Front Seat Heater

G12832675Courtesy of KIA MOTORS AMERICA, INC.

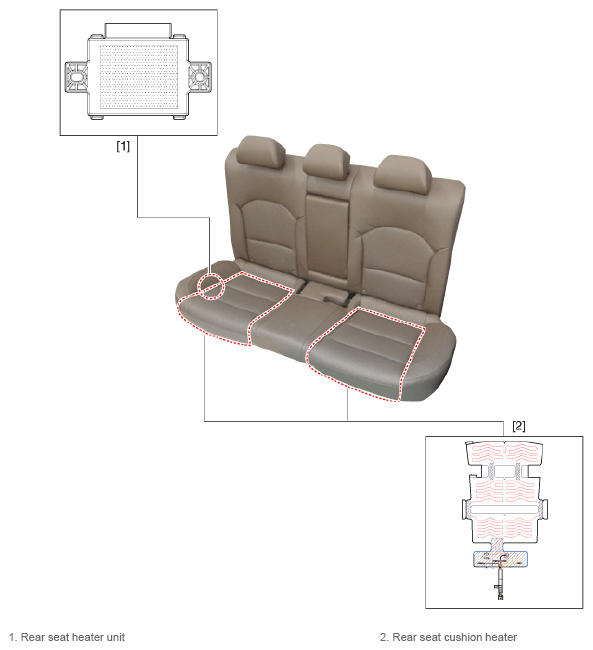

Rear Seat Heater

G12832676Courtesy of KIA MOTORS AMERICA, INC.
