Repair Procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - " TRUNK LID TRIM  ")

  3. Remove the inside rear combination lamp.

    (Refer to Lighting System - " REAR COMBINATION LAMP  ")

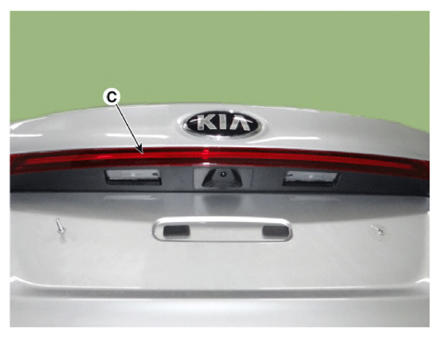

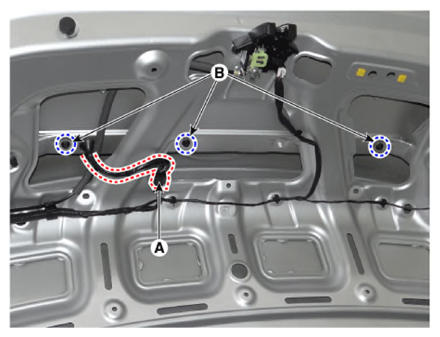

  4. Disconnect the connector (A) and then remove the trunk lid back panel (C) by loosening the nuts (B).
    G12832665Courtesy of KIA MOTORS AMERICA, INC.
    G12832666Courtesy of KIA MOTORS AMERICA, INC.

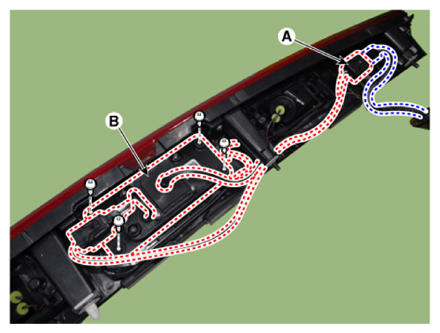

  5. Disconnect the connector (A) and then remove the rear view camera & trunk lid handle assembly (B) after loosening the screws.
    G12832667Courtesy of KIA MOTORS AMERICA, INC.

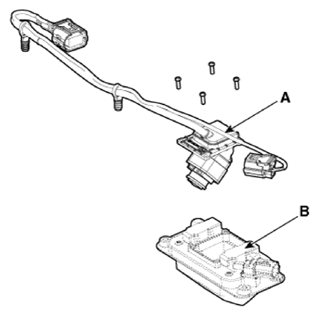

  6. Remove the rear view camera (A) by loosening the screw from the trunk lid handle (B).
    G12832668Courtesy of KIA MOTORS AMERICA, INC.
