Signal Waveform & Data

Fig 1: Screen Display - Normal Waveforms Of RPS During Acceleration

Courtesy of KIA MOTORS AMERICA, INC.

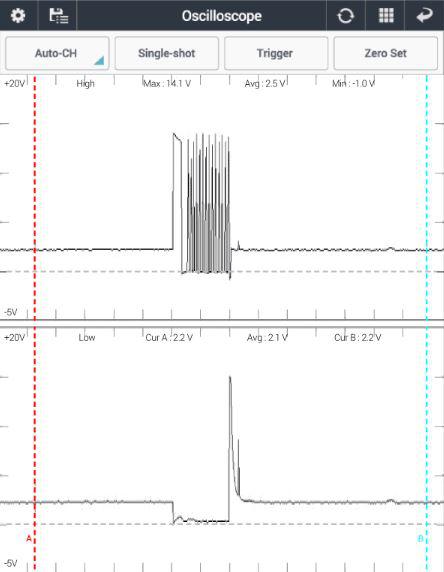

Fig 2: Screen Display - Normal Waveforms Of FPCV At Engine Idle

Courtesy of KIA MOTORS AMERICA, INC.

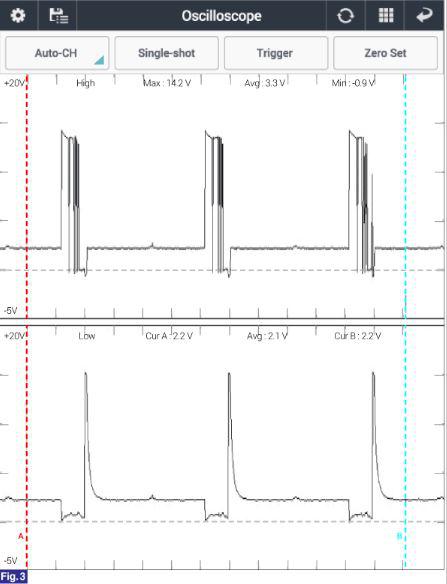

Fig 3: Screen Display - Normal Waveforms Of FPCV At Approx. 2000 RPM

Courtesy of KIA MOTORS AMERICA, INC.
