Signal Wavefrom & Data

G12813170Courtesy of KIA MOTORS AMERICA, INC.

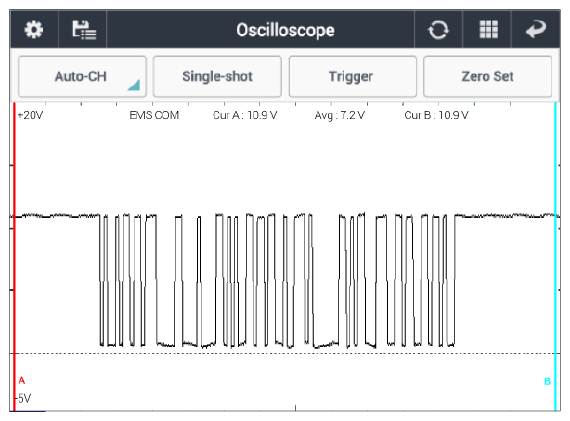

Figure) Communication signal waveform between SMK Unit and VMCU.
