FTPS Inspection

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Check the variation of FTPS by controlling the engine speed to 2, 000 RPM

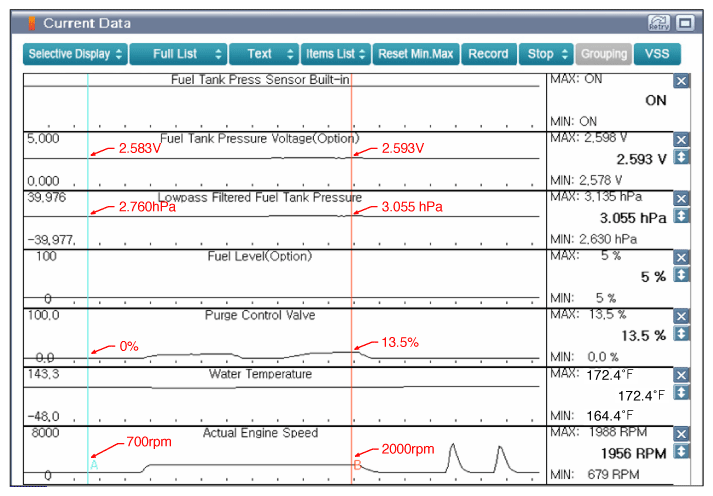

    Fig 1: Scantool Display - FTPS Variation During PCSV Operation
    G12212443Courtesy of KIA MOTORS AMERICA, INC.
  3. Does the CCV operate properly? (Check variation)

    YES

    NO

    • Carefully re-do this troubleshooting guide steps.
    • If problem still occurs, replace FTPS and then go to "System Inspection " procedure.
