Resetting Adaptive Values

Connect GDS to DLC(Data Link Cable).
IG "ON" & ENG "OFF"
Select the "Vehicle S/W Management" about related DTC with GDS.

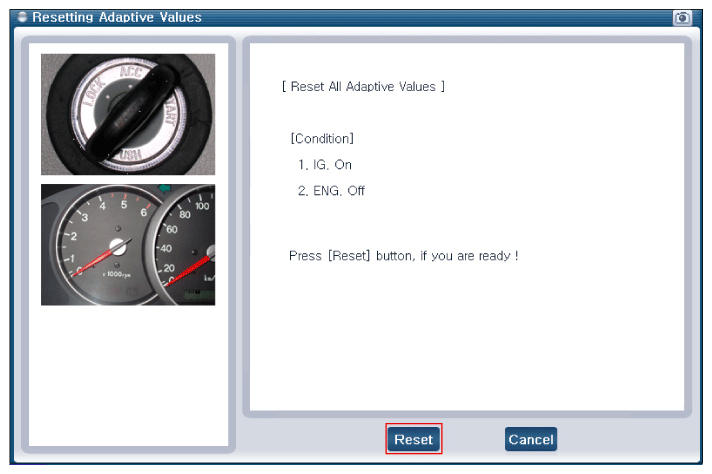

Fig 1: Screen Display - Press Reset Button To Progress For Next Procedure
Courtesy of KIA MOTORS AMERICA, INC.

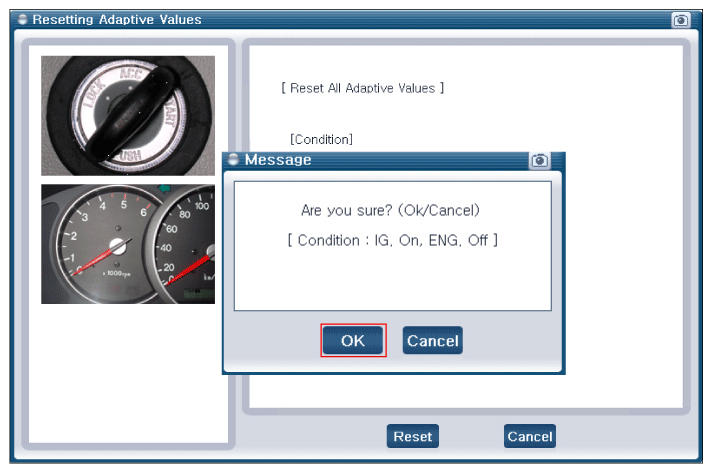

Fig 2: Screen Display - Press OK Button (IG ON, ENG OFF)
Courtesy of KIA MOTORS AMERICA, INC.

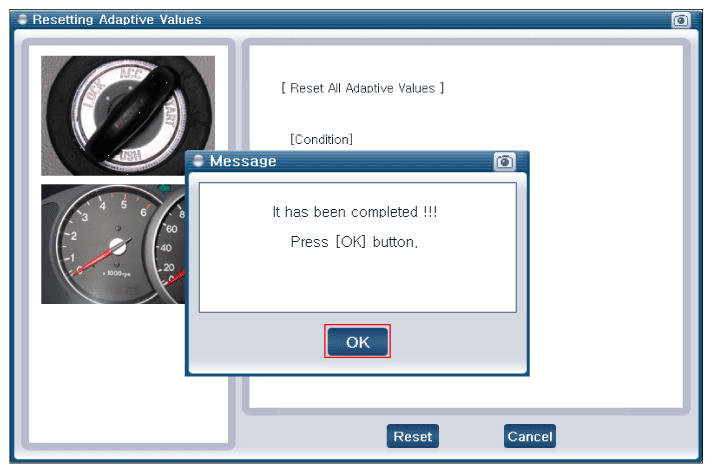

Fig 3: Screen Display - Completed
Courtesy of KIA MOTORS AMERICA, INC.
