Components Location

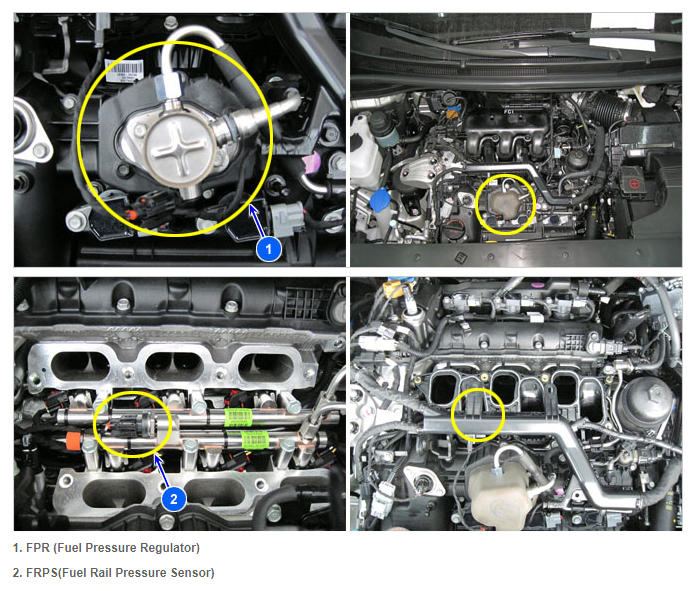

Fig 1: FPR (Fuel Pressure Regulator) & FRPS (Fuel Rail Pressure Sensor) Components Location
G12276464Courtesy of KIA MOTORS AMERICA, INC.
