Rear Bumper Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper assembly.

    (Refer to Body - " REAR BUMPER ASSEMBLY  ")

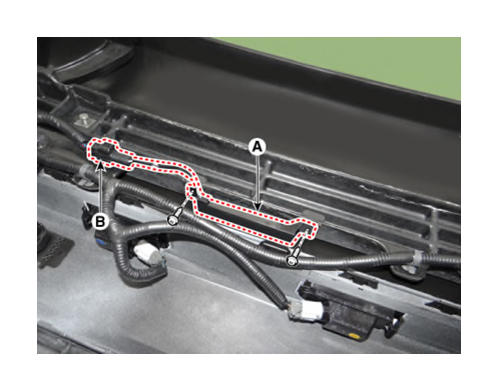

  3. Remove the rear bumper antenna (A) after loosening the mounting screws and disconnecting the connector (B).
    G12580192Courtesy of KIA MOTORS AMERICA, INC.
