Components Location

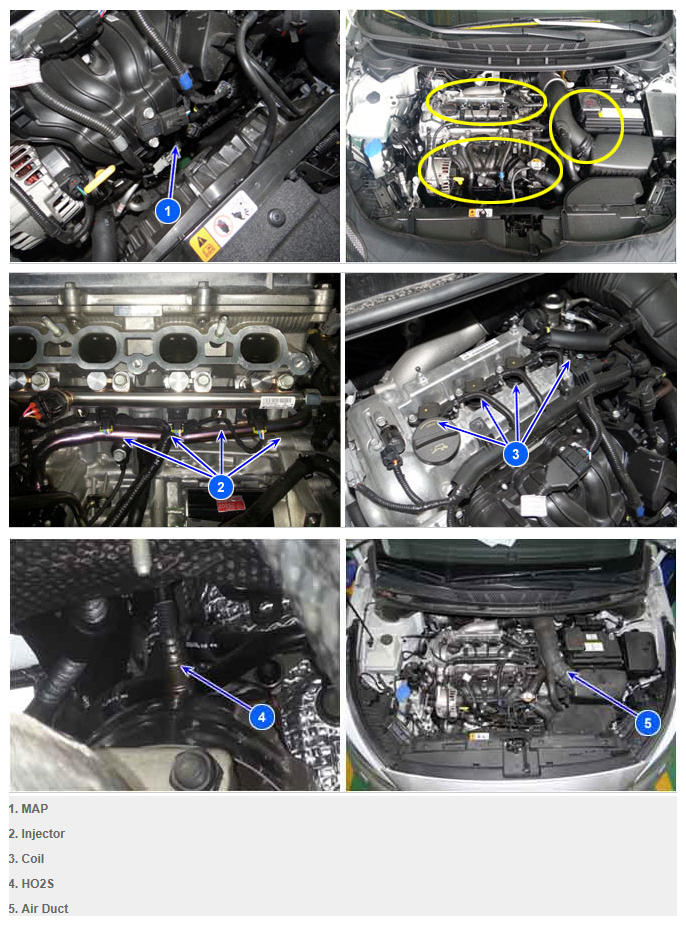

Fig 1: Locating MAP, Injector, Coil, HO2S And Air Duct Components
G12151186Courtesy of KIA MOTORS AMERICA, INC.
