Universal Joint Assembly

  1. Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

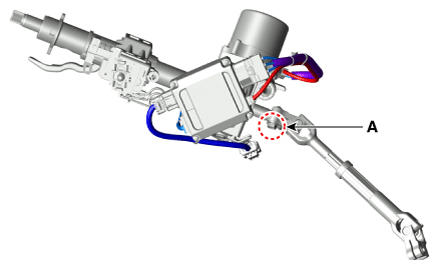

    Fig 1: Locating Universal Joint Assembly & Steering Column Assembly With Bolt
    G12294259Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
